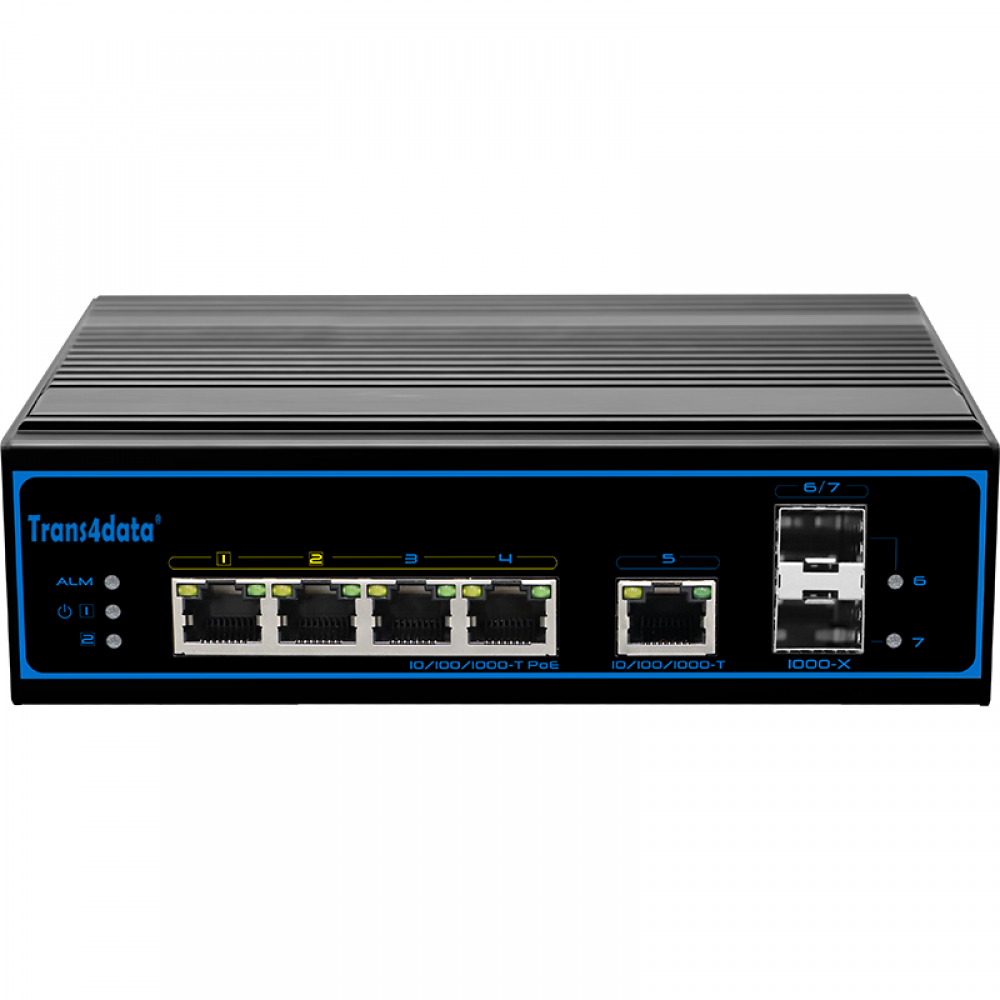

7 ports 250m 90W industrial PoE switch

Model No.: TIE7207BT-1GE-2GF

  • 4*10/100M PoE downlink ports,1*10/100/1000M Ethernet uplink port and 2*1000M SFP ports.
  • Support 2 port PoE power each up to 90W,6 port PoE power each up to 30W.
  • Support 3 working modes, PoE Auto-check, relay alarm function
  • Supports 6KV surge protection, 8KV contact/15KV air ESD protection.
  • Supports working temperature -40℃~80℃
  • 5 years warranty
OverviewFeaturesSpecificationApplicationOrder Information
The TIE7207BT-1GE-2GF is a 7-port Industrial unmanaged PoE switch that supports up to 4*10/100M PoE ports,
1* 10/100/1000M Ethernet ports and 2* 1000M SFP fiber ports. 4*10/100M ports support PoE+, conforming to IEEE 802.3af/at standard,
2 port Hi-PoE power up to 90W,2 port PoE power up to 30W.

TIE7207BT-1GE-2GF provides three modes, Extend, Default and VLAN, to adapt to various complex environments.
At the same time, support PoE Auto-check function,  which is specially designed to solve the problems of equipment frozen.
It can automatically detect the frozen PD equipment and restart the ports’output of PSE, and restart the PD device.
It greatly reduces the maintenance difficulty of engineering.

TIE7207BT-1GE-2GF has a high anti-interference ability, the product supports 6KV surge protection, and 8KV contact / 15KV
air ESD protection. It supports wall hanging, desktop and Din-rail installation, reliable and durable, and can be used in security
network video monitoring, network engineering and other occasions.
  • 4*10/100M PoE downlink ports,1*10/100/1000M Ethernet uplink port and 2*1000M SFP ports.
  • Support 2 port PoE power each up to 90W,2 port PoE power each up to 30W.
  • Provides three modes of Extend, Default and VLAN to adapt to various complex environments.
  • Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
  • Supports relay alarm for power off, network off and PoE off.
  • Supports 6KV surge protection, 8KV contact/15KV air ESD protection.
  • Supports working temperature -40℃~80℃

Parameter

 Specifications

Power supply

Powered by power adaptor

Range of voltage

DC 48~57V

Consumption

Self consumption<5W

Downlink ports

Ports 1~4 10/100/1000Base-TX PoE RJ45(2 ports 90W, 2 ports 30W)

Uplink ports

5 10/100/1000 Base-TX; Ports 6~7 1000 SFP slots

PoE Auto-check

If detect the frozen PD device, restart it

Working mode

Default mode: normal switch mode.

VLAN mode: ports 1 ~ 4 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control.

Cable and distance

Use cat5e/6,100m max(Extend mode max.250m)

Standard

IEEE802.3, IEEE802.3u, IEEE802.3z

Switch fabric

14Gbps

Though put

10.42Mpps

Buffer

1M

MAC address table

8K

Indicator

Power: 1 *red ;

Uplink6~7: On RJ45 green LEDs indicate Link/Act

port 5 yellow and green LEDs indicate Link/Act

Downlink 1~4: On RJ45 green LEDs indicate Link/Act , yellow LEDs indicate PoE

Protection

Surge: 6KV, standard: IEC61000-4-5

ESD: 8KV: contact / 15KV: air,standard:IEC61000-4-2

Working temperature

-40~80

Storage temperature

-40~85

Humidity

0~95%(No condensation)

Dimension(L×W×H)

165mm×115 mm×50mm

Material

Metal

Colour

Black

Net-weight

500g



Model

Description

TIE7207BT-1GE-2GF

With 4*10/100/1000M PoE downlink ports,1*10/100/1000M uplink ports, and 2*1000M SFP ports ;

2*DC48-57V power supply (Power adaptor buy extra) ;

Supports the PoE auto-check function.
