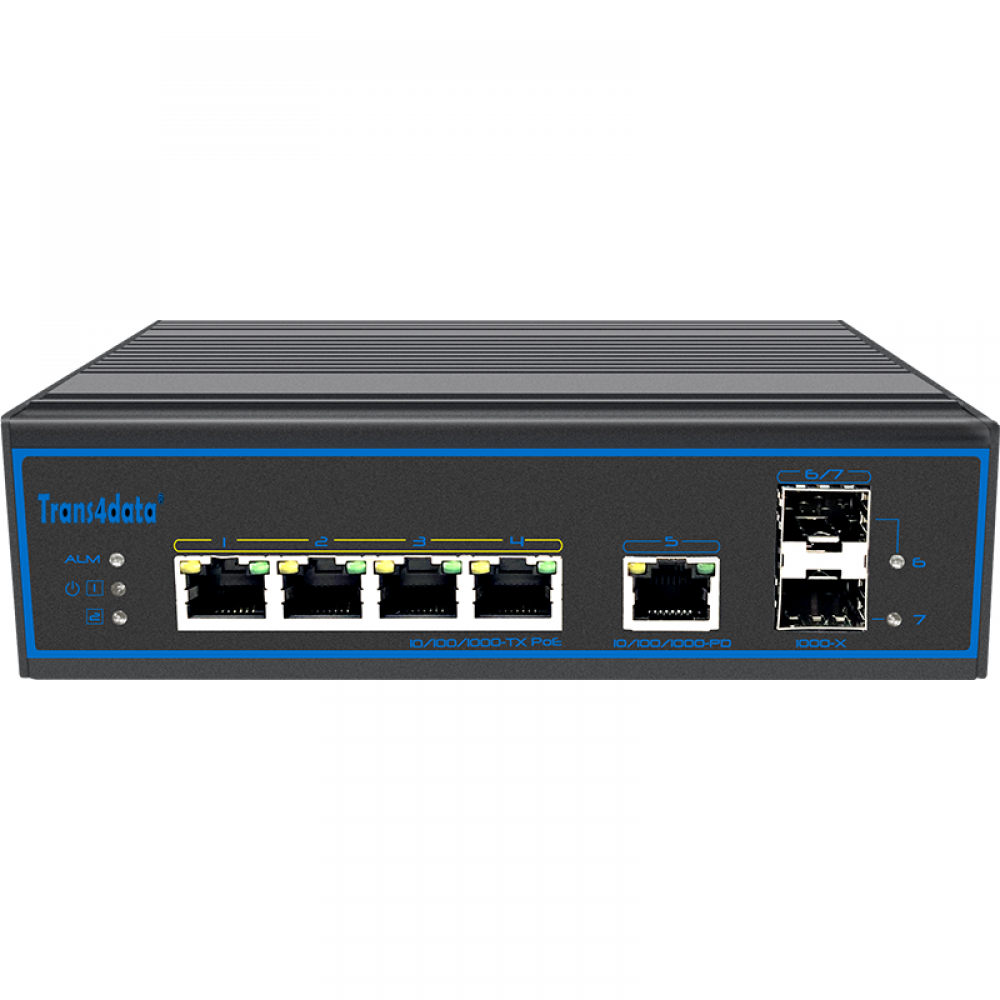

The TIE7207P-1G(PD)-2GF it is a 7-port, full gigabit industrial PoE switch that supports up to 4 *10/100/1000M PoE downlink ports,
1*10/100/1000M uplink ports(90W PD port optional) and 2*1000M SFP ports. 4*10/100/1000M ports support PoE+,
conforming to IEEE 802.3af/at standard.
TIE7207P-1G(PD)-2GF provides two modes, Default and VLAN, adapt to various complex environments.
At the same time, support PoE auto-check function, which is specially designed to solve the problems of equipment frozen.
It can automatically detect the frozen PD equipment and restart the ports’output of PSE, and restart the PD device.
It greatly reduces the maintenance difficulty of engineering.
TIE7207P-1G(PD)-2GF has the characteristics of reliable work, strong and durable, high performance and so on.
It can be used in security network video monitoring system, network engineering and other occasions
-
4*10/100/1000M PoE downlink ports,1*10/100/1000M uplink ports(90W PD optional), and 2*1000M SFP ports, and it supports 4 ports PoE power each up to 30W;
-
Supports two modes of Default and VLAN to adapt to various complex environments;
-
Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen.It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering ;
-
Supports 6KV surge protection, 8KV contact / 15KV air ESD protection ;
-
Supports relay alarm for power off, network broken, PoE off ;
-
Supports working temperature -40℃～80℃
|
Parameter
|
Specifications
|
|
Power supply
|
Powered by power adaptor
|
|
Range of voltage
|
DC 48~57V
|
|
Consumption
|
Self
consumption<5W
|
|
Downlink ports
|
Ports 1~4
10/100/1000Base-T 30W PoE RJ45(IEEE802.3af/at)
|
|
Uplink ports
|
Port 5: 10/100/1000
Base-T uplink port or 90W PD RJ45;
Ports 6~7
1000 SFP slots
|
|
PoE Auto-check
|
If detect the frozen PD device, restart it
|
|
Working mode
|
Default mode: normal switch mode.
VLAN mode: ports 1~4 are isolated
from each other and can only communicate with the uplink port; restrain the
network storm; turn off the flow control.
|
|
Cable and distance
|
Use
cat5e/6,100m max(Extend mode max.250m)
|
|
Standard
|
IEEE802.3, IEEE802.3u, IEEE802.3z
|
|
Switch fabric
|
14Gbps
|
|
Though put
|
10.42Mpps
|
|
Buffer
|
1M
|
|
MAC address table
|
8K
|
|
Indicator
|
Power: 1 *red ; Uplink5~7: On RJ45 yellow and green LEDs
indicate Link/Act
Downlink 1~4: On RJ45 green LEDs indicate Link/Act ,
yellow LEDs indicate PoE
|
|
Protection
|
Surge: 6KV, standard: IEC61000-4-5
ESD: 8KV: contact / 15KV: air,standard:IEC61000-4-2
|
|
Working
temperature
|
-40℃~80℃
|
|
Storage
temperature
|
-40℃~85℃
|
|
Humidity
|
0~95%(No condensation)
|
|
Dimension(L×W×H)
|
165mm×115 mm×50mm
|
|
Material
|
Metal
|
|
Colour
|
Black
|
|
Net-weight
|
500g
|
|
Model
|
Description
|
|
TIE7207P-1G(PD)-2GF
|
With 4*10/100/1000M PoE downlink ports,1*10/100/1000M
uplink ports(90W PD optional), and 2*1000M SFP ports; 2*DC48-57V power
supply(Power adaptor buy extra);
Supports two modes of Default and VLAN to adapt to various
complex environments;
Supports the PoE Auto-check function.
|
