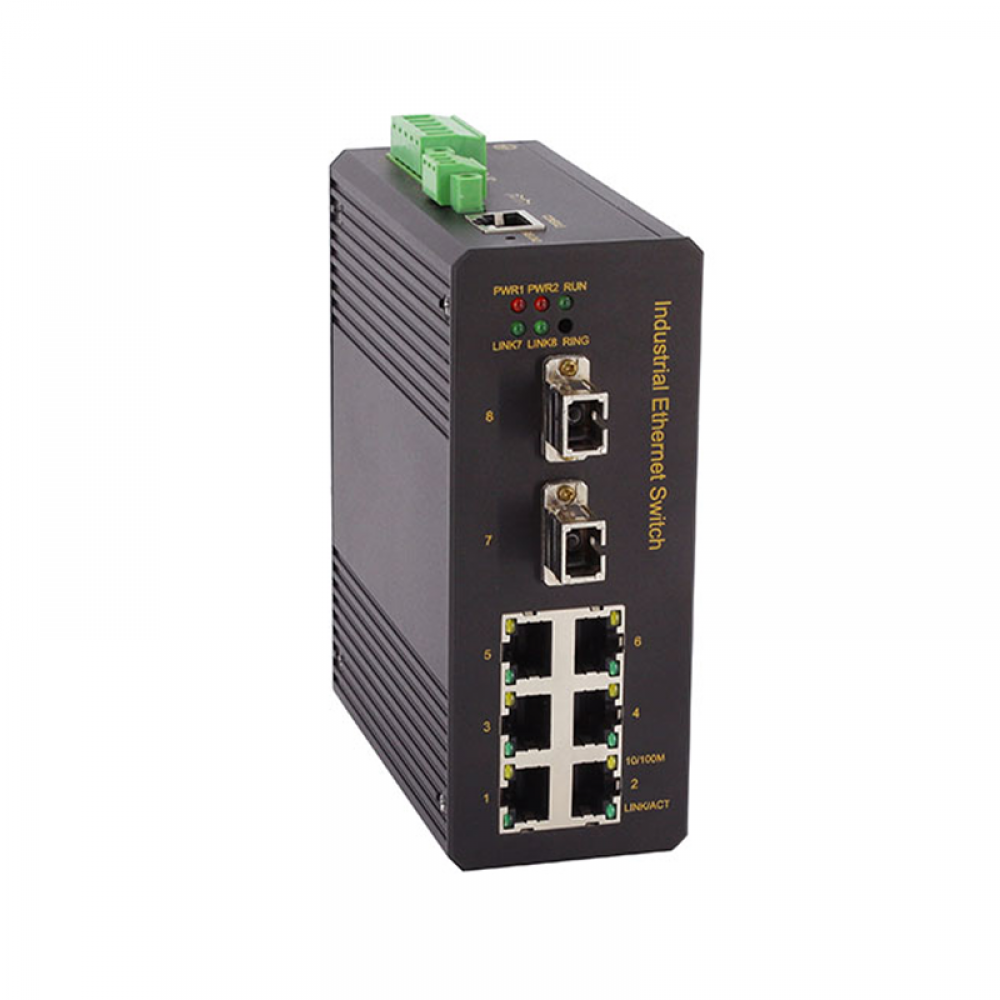

8 Ports 10/100Base layer 2 managed Din-rail industrial Ethernet switch with 2 *gigabit fiber By-pass ports uplink

TMIE7208BP-2GF Gigabit optical link bypass managed din-rail industrial Ethernet switch
is designed and developed for industrial high-speed communication network applications.
It provides a high-end industrial Ethernet communication solution for flexible industrial applications.
It breaks through the 10/100M backbone network communication bottleneck and provides
2 Gigabit fiber ports and 6 10/100M copper ports

6x10/100BaseT(x)+ 2x1000M FX ports;
Supports BY-PASS (maintain network connectivity when the in-line system fails);
Supports static multicast/IGMP Snooping;
Supports broadcast storm suppression/ Rate limit;
Supports industrial grade dual power input backup;
Supports independent dual redundant power supply configuration, support power loss, fiber drop, Broadcast storm alarm output;
Supports VLAN/ Qos/ Port link aggregation /port mirroring;
Industrial grade wide temperature/ fanless design.

Software performance
Redundancy protocol	Support T-Ring and the recovery time<20ms. Support STP/RSTP
Multicast routing	Support IGMP snooping/ IGMP v1/v2/v3 Support GMRP Support static multicast
Management and maintenance	Support Console and Web management methods Support SNMPv1/v2c Support unified PC software management
Technical specifications
Ethernet Standard	IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.1D-Spanning Tree Protocol IEEE802.1w-Rapid Spanning Tree Protoco IEEE802.1Q -VLAN Tagging IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control
Switch properties
Priority queue	4
VLAN ID	1-4096
IGMP Groups	256
MAC table	8k
Switch Bandwidth	5.2Gbps
Switch Delay	<5μs
Interface
Gigabit ports	Port numbers: 2
	Connector: 2 SC connector Single fiber bidirectional SFP
	Baud rate: 1000Base-LX
10/100Base port	Port numbers: 6
	Connector: RJ45 100Base-Tx
	Baud rate: adaptive 10/100MBase-Tx

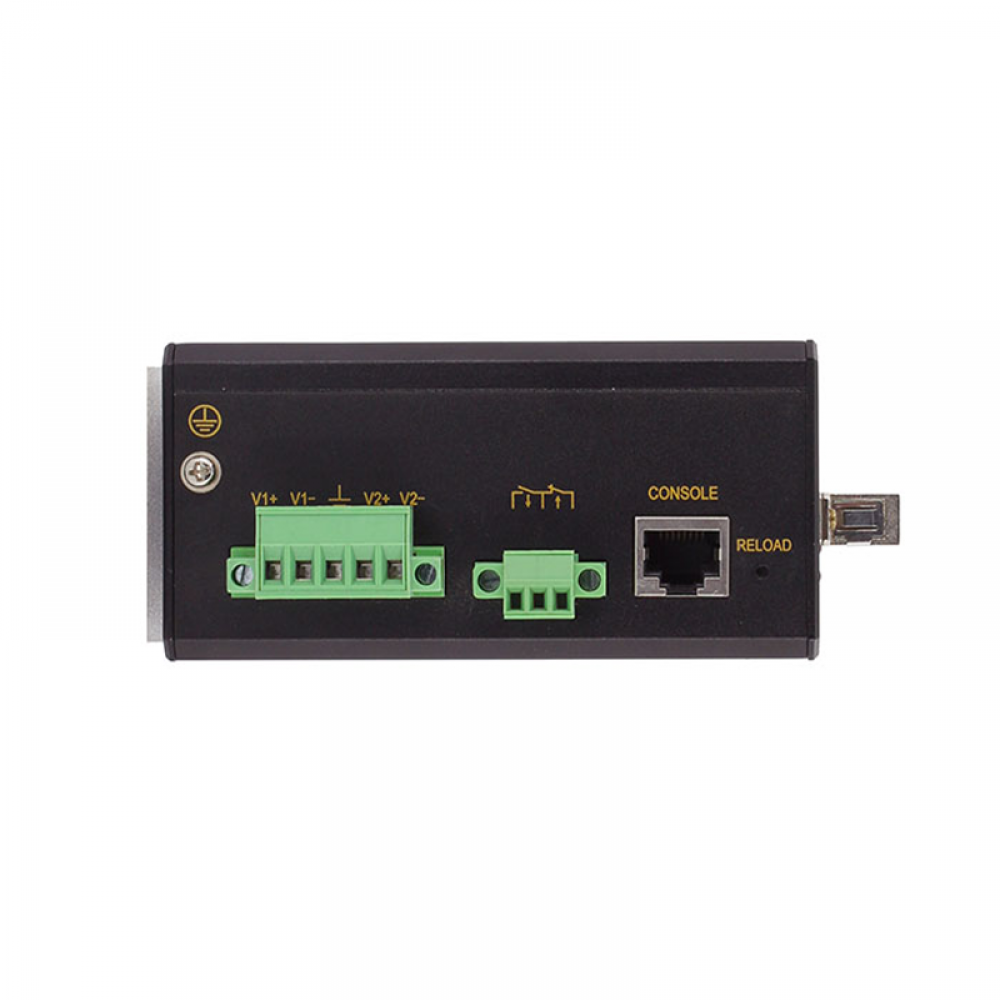

Terminal block for power input	5.08mm terminal block
Terminal block for relay alarm	5.08mm terminal block,1A@24VDC
Communication distance
Twisted-pair	100m(CAT5/CAT5e cable)
Fiber	20km/40km/60km/80km
LED indicator lights

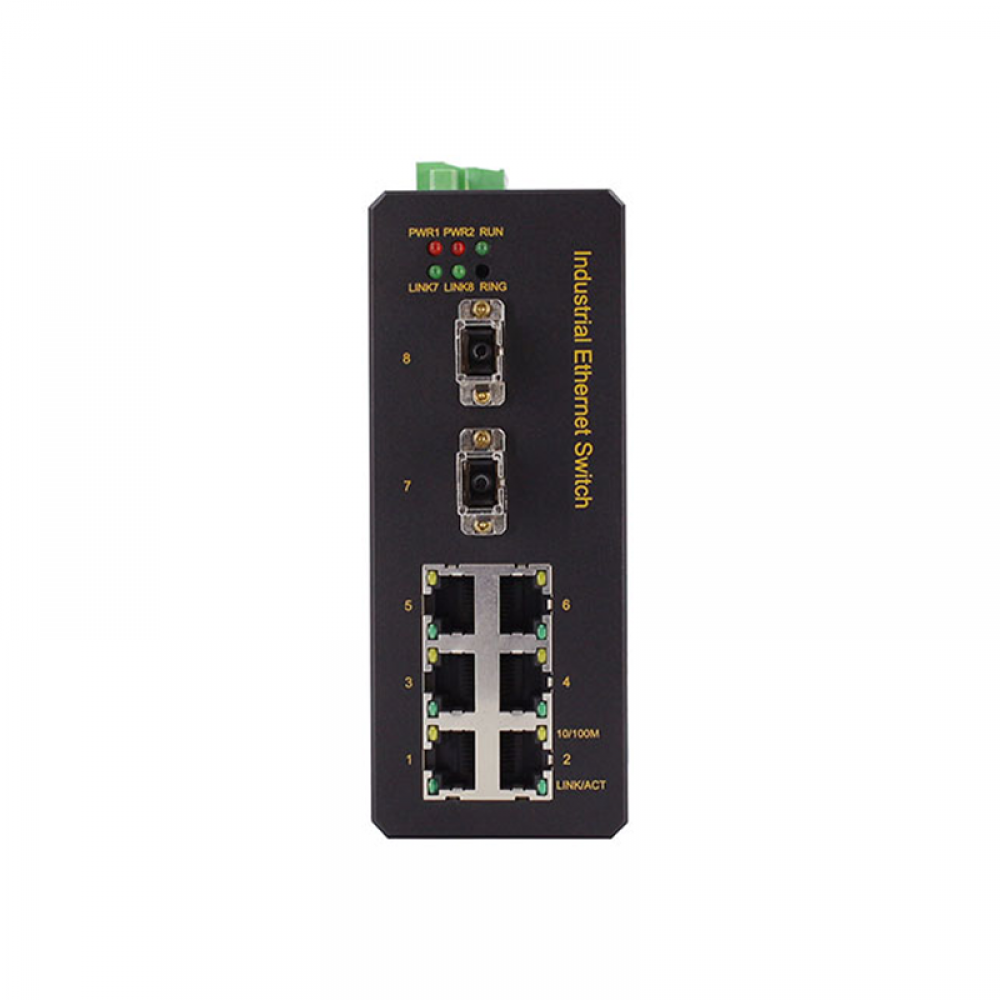

Front panel LED	Port light: LINK/ACT; SPEED
	Running light: RUN
	Power LED: PWR1/PWR2
Power Requirements
Power input	DC12-48V(support dual power Redundant input)
Full-load consumption	<6W
Overload protection	support
Inversed protection	support
Redundancy protection	support
Working Environment
Operating Temperature	-40°C~80°C
Storage temperature	-40°C~85°C
Ambient Humidity	5%~95%( non-condensing)
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	35mm din rail-mounted installation
Dimension	54mmx138mmx110mm
Industry standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6
Warranty
Warranty	5 Years
Certification	CE/FCC/RoHS

TMIE7208BP-2GF

2 Gigabit Fx ports +6 10/100M Tx ports, by-pass Function, dual DC12~48V wide voltage power supply
