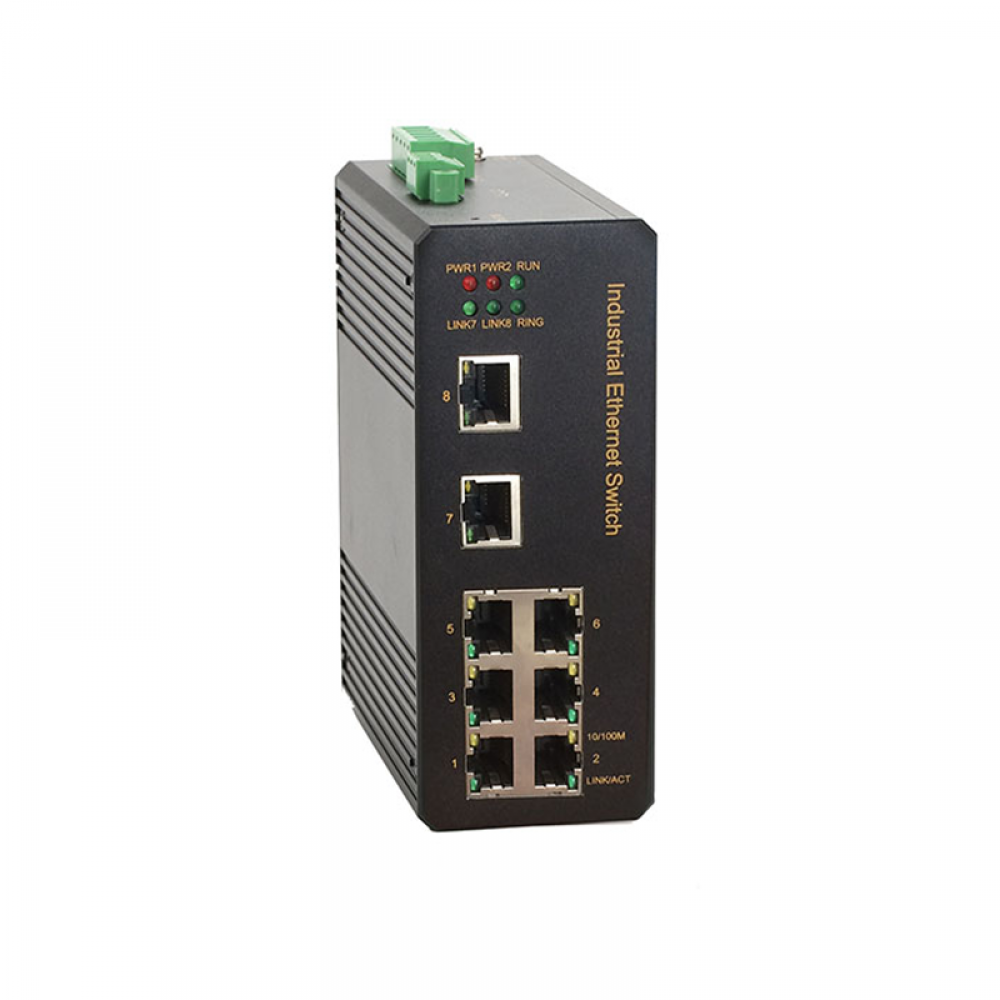

8 Ports 10/100Base layer 2 managed Din-rail industrial Ethernet switch

Model No.: TMIE6208-2E


  • 8x10/100BaseT(x);
  • Supports T-Ring with the recovery time<20ms;
  • Supports broadcast storm suppression/ Rate limit;
  • Supports industrial grade dual power input backup;
  • Supports power-down status relay alarm output;
  • Supports VLAN/ Qos/ Port link aggregation /port mirroring ;
  • Industrial grade wide temperature/ fanless design;
  • 5 years warranty.

OverviewFeaturesSpecificationApplicationOrder Information
TMIE6208-2E 10/100M managed din rail industrial Ethernet switch is an industrial Ethernet switch designed and
developed by Trans4data for industrial high-speed communication network applications. It provides a high-end
industrial Ethernet communication solution for flexible industrial applications, making industrial communications smoother,
more reliable and faster, meeting the needs of customers for innovative value-added applications

  • 8x10/100BaseT(x) or 2x10/100BaseF(x)+6x10/100BaseT(x)
  • Supports indicator status display
  • Supports T-Ring with the recovery time<20ms
  • Supports static multicast/IGMP Snooping
  • Supports broadcast storm suppression/ Rate limit
  • Support industrial grade dual power input backup
  • Support power-down status relay alarm output
  • Support VLAN/ Qos/ Port link aggregation /port mirroring
  • Industrial grade wide temperature/ fanless design
  • 5 years warranty

Software performance

Redundancy protocol

Support T-Ring and the recovery time<20ms.
Support STP/RSTP

Multicast routing

Support static multicast

Management and maintenance

Support Web management methods
Support unified PC software management

Technical specifications

Ethernet Standard

IEEE802.3-10BaseT

IEEE802.3u-100BaseTX/100Base-FX

IEEE802.3x-Flow Control

IEEE802.3z-1000BaseLX
IEEE802.3ab-1000BaseTX

IEEE802.1ab

IEEE802.1D-Spanning Tree Protocol

IEEE802.1w-Rapid Spanning Tree Protoco

IEEE802.1Q -VLAN Tagging

IEEE802.1p -Class of Service
IEEE802.1X-Port Based Network Access Control

Switch properties

Priority queue

4

VLAN ID

1-4096

IGMP Groups

256

MAC table

2k

Switch Bandwidth

2Gbps

Switch Delay

<5μs

Interface

10/100Base ports

Port numbers: 8

Connector: 9 fixed F(x)(Single/multi-mode or SC/FC/ST port available) or RJ45

Baud rate: 100Base-FX, 10/100/100M for adaptive port

Console port

RS232/RJ45

Terminal block for power input

5.08mm terminal block

Terminal block for relay alarm

5.08mm terminal block, 1A@24VDC

Communication distance

Twisted-pair

100m(CAT5/CAT5e cable)

Multimode fiber

10/100Base multi-mode: 1310nm 2km

Single mode fiber

10/100Base single-mode: 1310nm 20/40km; 1550nm 60/80km

LED indicator lights

Front panel LED

Port light: LINK/ACT;SPEED;

Running light: RUN

Power LED: PWR1/PWR2

Power Requirements

Power input

DC110~220V(DC110~370V range) or AC100~240V(AC85~264V range) DC12V/DC24V available

Full-load consumption

<5W

Overload protection

support

Inversed protection

support

Redundancy protection

support

Working Environment

Operating Temperature

-40°C~80°C

Storage temperature

-40°C~85°C

Ambient Humidity

5%~95%( non-condensing)

Physical Characteristics

Shell

IP40 protection, aluminum alloy shell

Installation

35mm din rail-mounted installation

Dimension

54mmx144mmx110mm

Industry standard

EMC

EN61000-4-2(ESD), Level 4

EN61000-4-3(RS), Level 4

EN61000-4-4(EFT), Level 4

EN61000-4-5(Surge), Level 4

EN61000-4-6(CS), Level 4

EN61000-4-8,Level 5

Impact

IEC60068–2-27

Falling

IEC60068-2-32

Shock

IEC60068-2-6

Warranty

Warranty period

5 Years

Certification

CE/FCC/RoHS




TMIE6208-2E-DC24

8x10/100baseT(x), standard dual power supply
