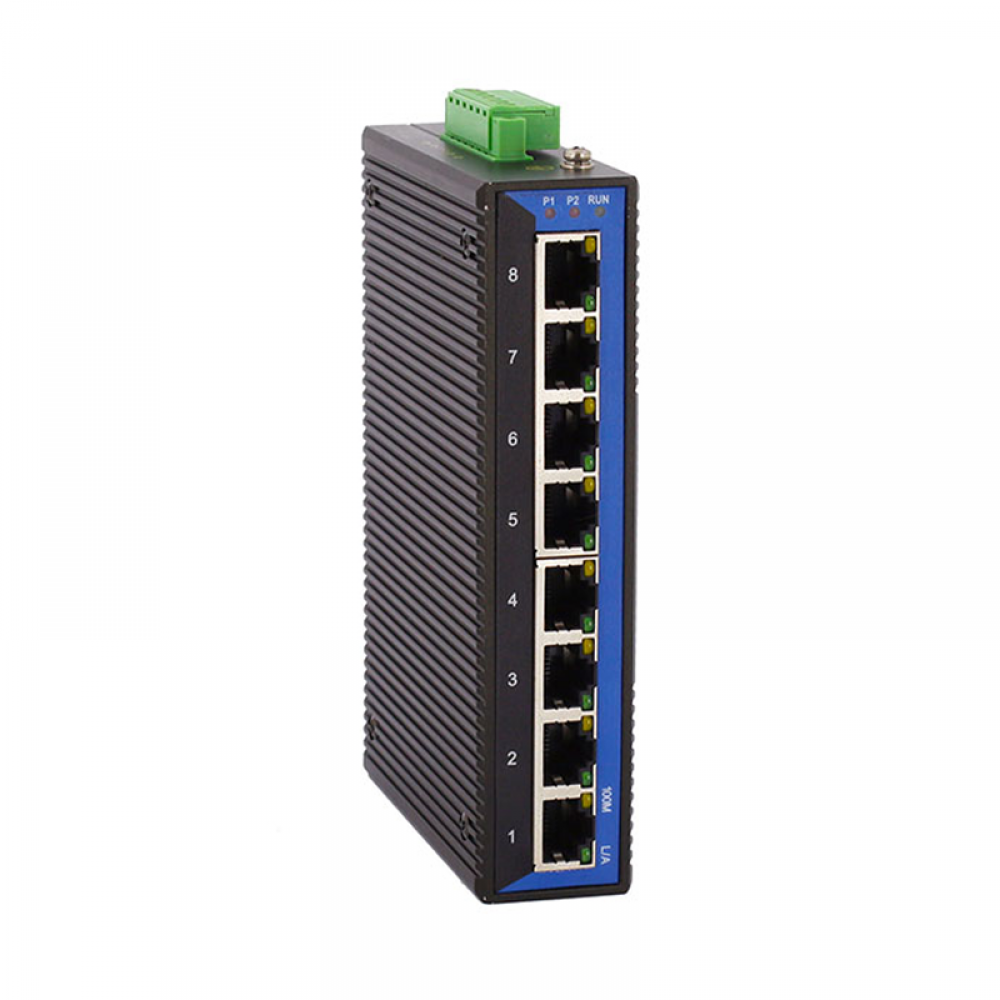

8 ports 10/100M Din-rail mounting unmanaged industrial Ethernet switch

TIE6208 is an industrial Ethernet switch designed and developed for industrial high-speed communication network applications.
The switch is mainly used for simple application in plug and play. All electrical ports support auto-negotiation, Auto-MDI/ MDI-X
and other functions. It makes industrial communications smoother, more reliable and faster which meets the needs of customers
to innovate to increase value-added applications. It supports AC and DC 220V power and also supports wide range DC and AC power inputs

8x10/100M RJ45 ports
Starts working once connected, quick and convenient
Supports status display indicator lights
Supports industry power supply
Supports power-down status reply alarm output
Wide temperature range design, fan-less thermal design
Industrial level 4 protection, satisfy harsh industrial environment
5 years warranty

Technical parameters
Protocol Standard	IEEE802.3(Ethernet), IEEE802.3u(100Base-TX&100Base-FX), IEEE802.3x(Flow control)
Switch capability
MAC Table Size	4k
Backplane bandwidth	1.6Gbps
Switch Delay	<5μs
Interface
100M port	Number: 8
	Connector: 1×9 fixed optical port(single/multi-mode optional, SC/FC/ST interface) or RJ45 100M TX port
	Baud rate: 100Base-FX(Optical port), Self-adaption 10/100Mbase-TX

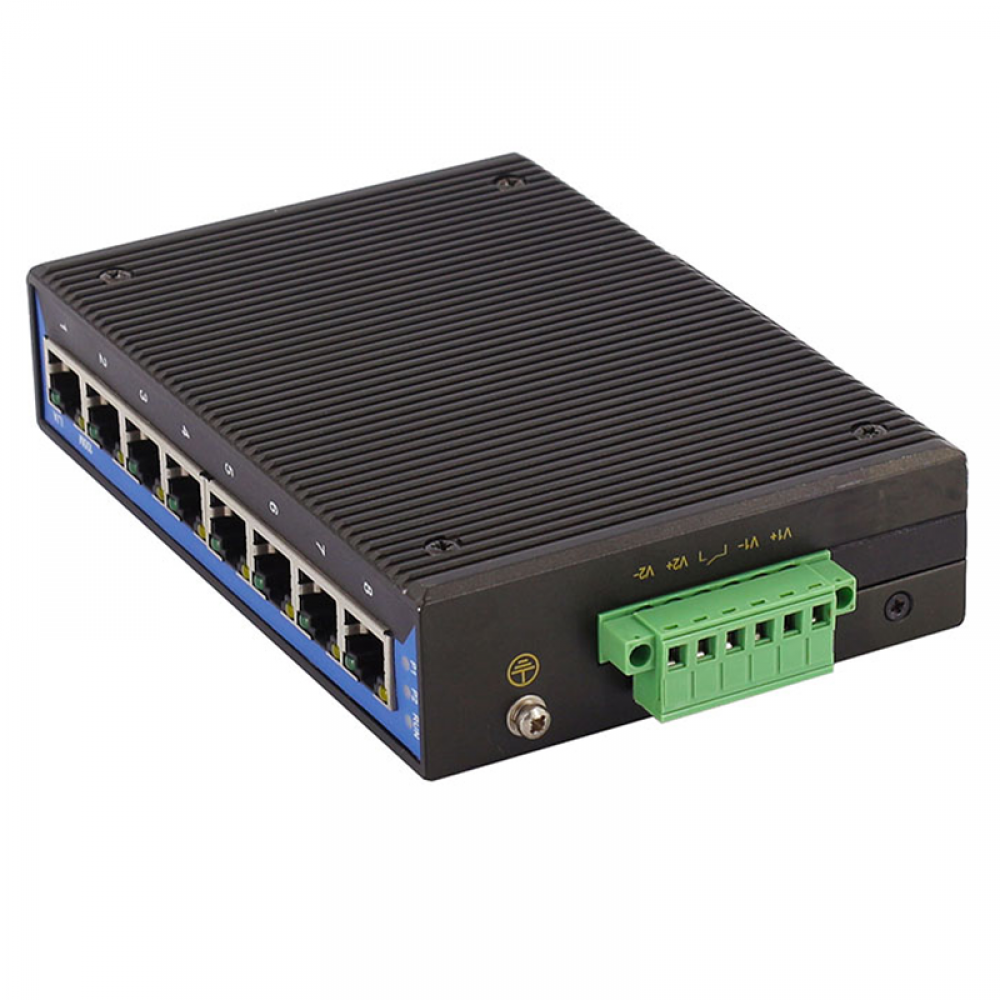

Terminal block for power input	5.08mm terminal block
Terminal block for relay alarm	5.08mm terminal block ,1A@24VDC
Communication distance
Twisted-pair	100m(CAT5/CAT5e cable)
Multi-mode fiber	100M multi-mode: 1310nm, 2km
Single mode fiber	100M single mode: 1310nm, 20/40km; 1550nm, 60/80km
LED indicator lights
Front panel LED lights	Port light: LINK/ACT; SPEED; Lx
	System work light: RUN
	Power status light: PWR1; PWR2
Power
Input power	DC110~220V (Wide temperature:DC110~370V) or AC100~240V (Wide temperature: AC85~264V) Support optional for DC12V, DC24V, DC48V
Power consumption	<6W@(MAX)
Overload protection	support
Inversed protection	support
Redundancy protection	support
Working Environment
Operating Temperature	-40°C~80°C
Storage temperature	-40°C~85°C
Ambient Humidity	5%~95%
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	Standard 35mm DIN-rail Mounting
Dimension	MIEN2208 33.0mm144.0mm97.0m (W×H×D) MIEN2208-1/2/4F 54.0mm144.0mm97.0mm (W×H×D)
Industry standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6
Warranty
Warranty	5 Years
Certification	CE, FCC, RoHS

TIE6208	8 *10/100M Tx ports, dual DC12~48V wide voltage power supply
TIE6208-DC48	8 *10/100M Tx ports, dual DC48V(36~72V) isolate power supply
TIE6208-AD220	8* 10/100M Tx ports, single AC85-264V/DC110~370V isolate power supply
