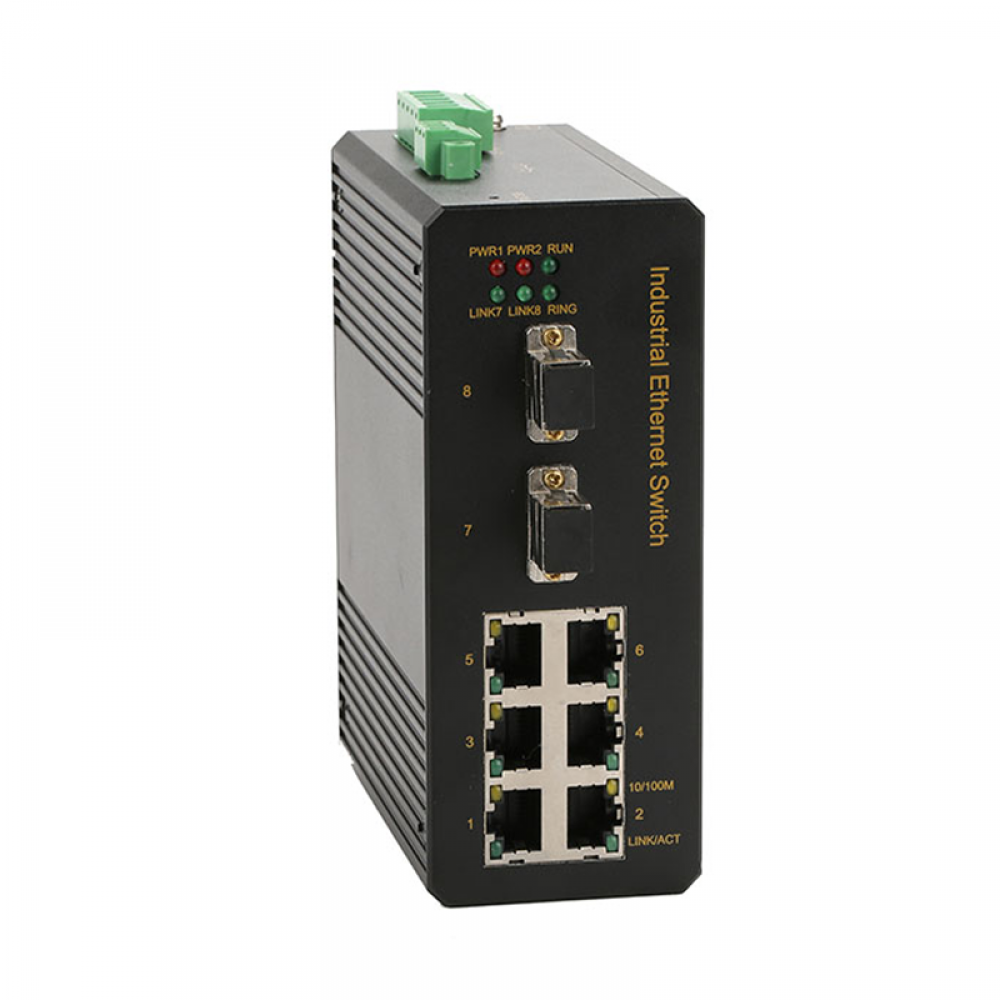

TIE6208BP-2F is a high-performance unmanaged din-rail mounting industrial Ethernet switch.
It has stable communication performance which can adapt to various harsh working environments.
It has 2 fiber ports and 6 copper ports, the fiber ports are 100Base-FX single-fiber bidirectional interface,
which supports BY-PASS power-down straight-through function, it ensures the integrity of the fiber link
and further improves the reliability of the overall network structure; the copper ports are 100Base RJ45 ports,
each RJ45 port has an adaptive function, which can be automatically configured to 10Base or 100Base-TX state,
full-duplex or half-duplex operation mode, and it can connect MDI/MDI-X automatically
-
Supports 2x100M FX ports+6x10/100M RJ45 ports
-
Support By-Pass patent redundancy technique
-
Starts working once connected, quick and convenient
-
Supports status display indicator lights
-
Supports industry power supply
-
Supports power-down status reply alarm output
-
Wide temperature range design, fan-less thermal design
-
Industrial level 4 protection, satisfy harsh industrial environment
-
5 years warranty
|
Technical
parameters
|
|
Protocol
Standard
|
IEEE802.3(Ethernet), IEEE802.3u
(100Base-TX&100Base-FX), IEEE802.3x (Flow control), IEEE802.3z(1000Base-LX), IEEE802.3ab(1000Base-T)
|
|
Switch
capability
|
|
MAC
Table Size
|
4k
|
|
Backplane bandwidth
|
2Gbps
|
|
Switch
Delay
|
<5μs
|
|
Interface
|
100M port
|
Number: 8
|
Connector: Single fiber bidirectional SC fixed optical port or RJ45 100M TX port
|
Baud rate:100Base-FX(Optical port),Self-adaption 10/100Mbase-TX
|

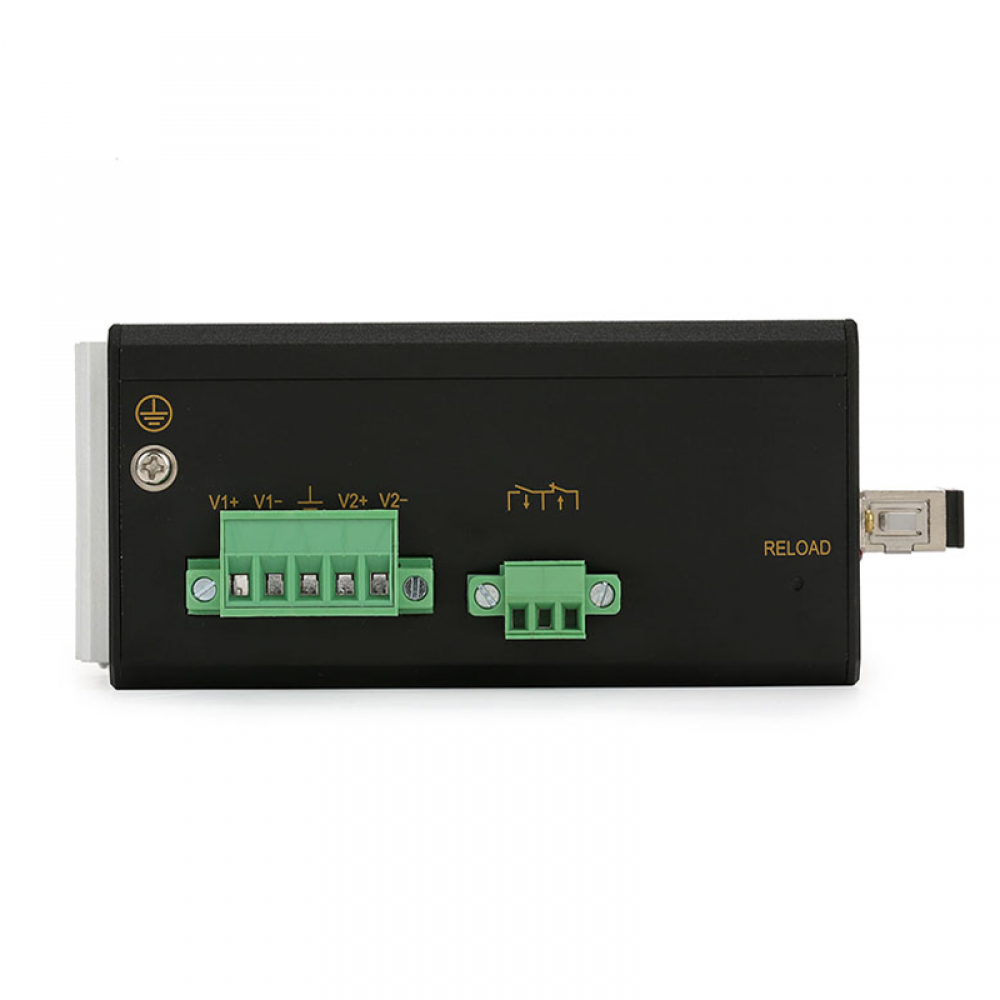

Terminal block for power input
|
5.08mm terminal block
|
Terminal block for relay alarm
|
5.08mm terminal block ,1A@24VDC
|
|
Communication distance
|
Twisted-pair
|
100m(CAT5/CAT5e cable)
|
Fiber
|
20km/40 km/60 km/80 km
|
|
LED indicator
lights
|
|
Front panel LED lights
|
Port light: LINK/ACT; SPEED;
|
|
System work light: RUN
|
|
Power status light: PWR1; PWR2
|
|
Power
|
|
Input power
|
DC12~48V
Support dual power redundancy input
|
|
Power consumption
|
<5W@(MAX)
|
|
Overload protection
|
support
|
|
Inversed protection
|
support
|
|
Redundancy protection
|
support
|
|
Working Environment
|
|
Operating Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%
|
|
Physical Characteristics
|
|
Shell
|
IP40 protection, aluminum alloy shell
|
|
Installation
|
Standard 35mm DIN-rail Mounting
|
|
Dimension
|
138mm×110mm×54mm
|
|
Industry standard
|
|
EMC
|
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
EN61000-4-8, Level 5
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty
|
5 Years
|
|
Certification
|
CE, FCC, RoHS
|
|
TIE6208BP-2F
|
2 *10/100M Fx ports +6 *10/100M Tx
ports, by-pass function, dual DC12~48V wide voltage power supply
|
