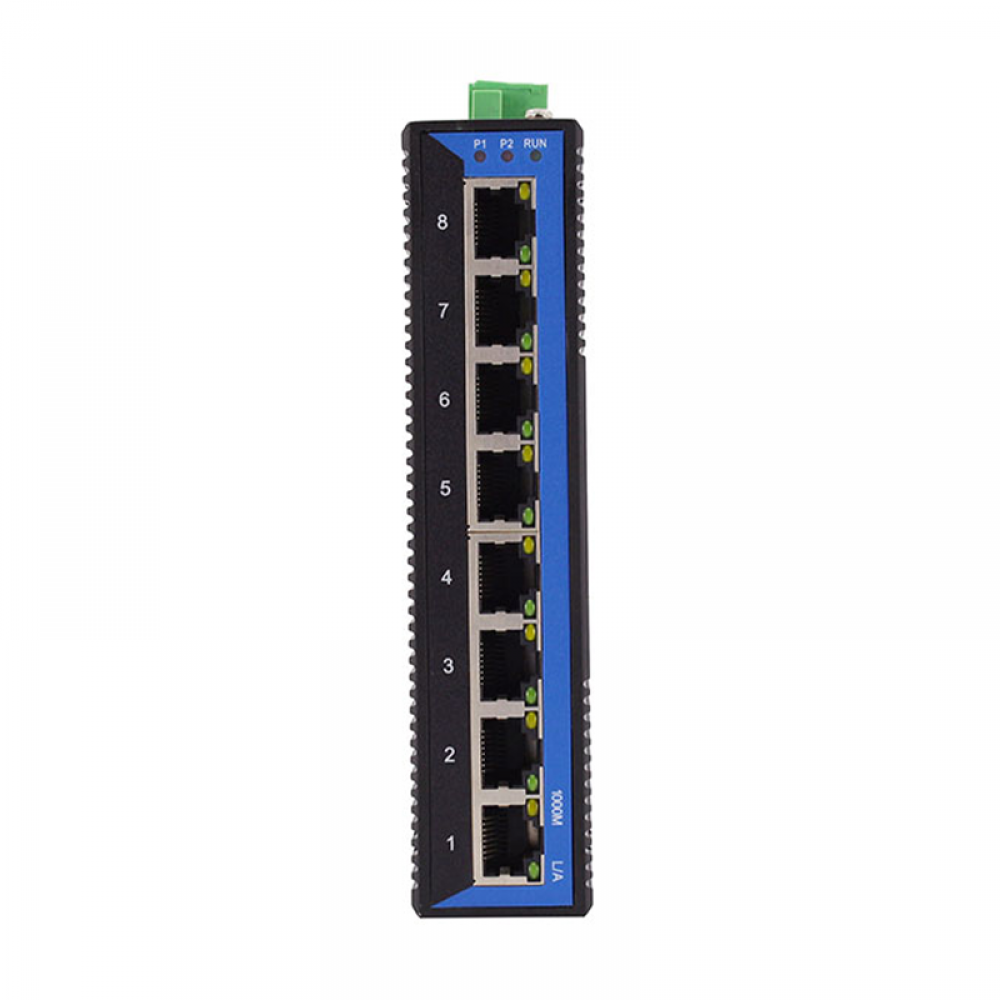

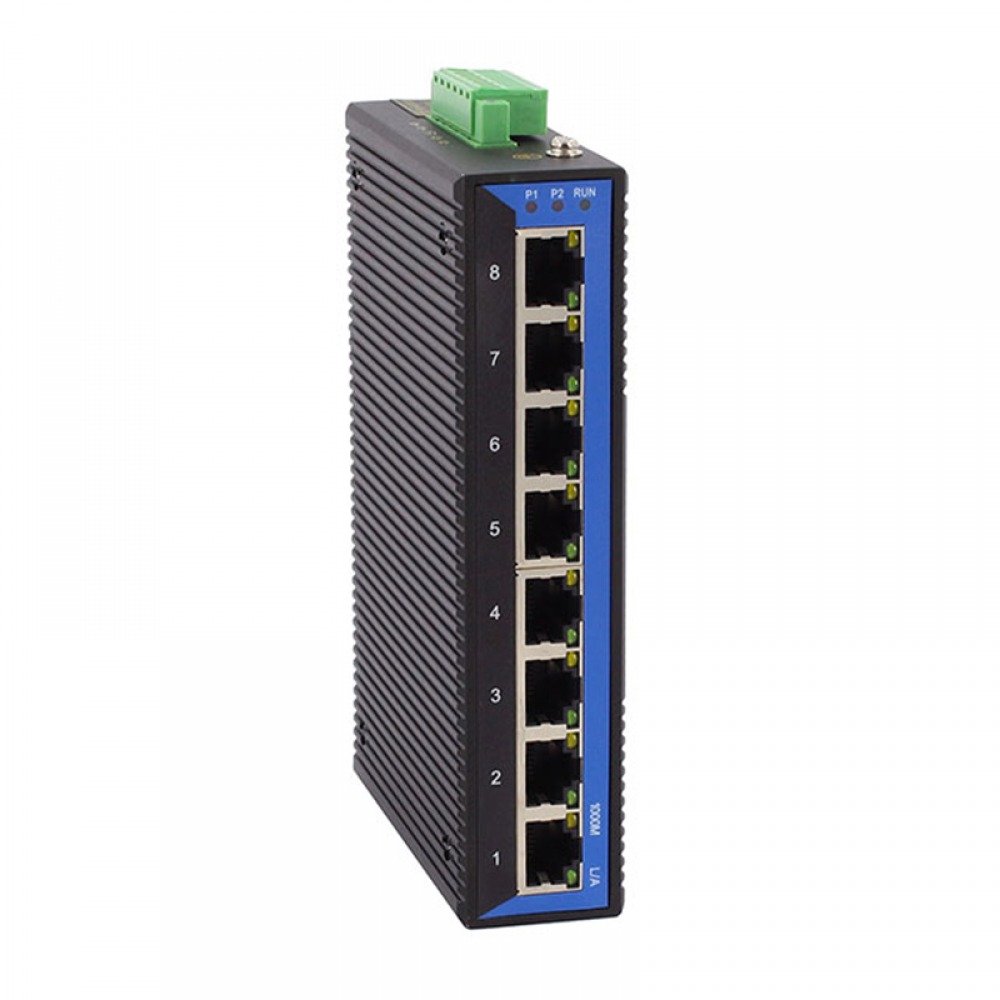

TIE7208 is a high-performance, unmanaged industrial Ethernet switch with 8 Gigabit copper ports.
The 8 Gigabit copper ports support 10/100/1000M adaptive, suitable for applications with large bandwidth requirements.
This product supports power failure alarm output function, which is convenient for field engineers to find and handle faults in time
-
8* 10/100/1000M copper ports
-
Starts working once connected, quick and convenient
-
Supports status display indicator lights
-
Redundancy dual power supply
-
Supports power-down status reply alarm output.
-
Wide temperature range design, fan-less thermal design
-
Industrial level 4 protection, satisfy harsh industrial environment
-
5 years warranty
|
Technical parameters
|
|
Protocol
Standard
|
IEEE802.3,IEEE802.3u(100Base-TX/100Base-FX),
IEEE802.3x, IEEE802.3ab(1000Base-T)
|
|
Switch capability
|
|
MAC
Table Size
|
4k
|
|
Backplane bandwidth
|
16Gbps
|
|
Switch
Delay
|
<5μs
|
|
Interface
|
|
Gigabit
ports
|
Port numbers: 8
|
|
Connector:
RJ45 copper port
|
|
Baud
rate: 10/100/1000M for copper port
|
|
Terminal
block for relay alarm
|
5.08mm
terminal block, 1A@24VDC
|
|
Terminal
block for power input
|
5.08mm
terminal block
|
|
Communication distance
|
|
Twisted-pair
|
100m(CAT5/CAT5e cable)
|
|
LED indicator
lights
|
|
Front
panel LED lights
|
Port light: LINK/ACT; SPEED
|
|
System work light: RUN
|
|
Power
status light: PWR1, PWR2
|
|
Power
|
|
Power Supply
|
DC12~48V dual power in standard;
Optional before order: DC48V dual power, or AC/DC220V(85-264VAC/110-370VDC)
single power
|
|
Power consumption
|
<6W
|
|
Overload protection
|
support
|
|
Inversed protection
|
support
|
|
Working Environment
|
|
Operating Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%
|
|
Physical Characteristics
|
|
Shell
|
IP40 protection, aluminum alloy shell
|
|
Installation
|
Standard
3.5 Din-rail mounting
|
|
Dimension
|
33.0mmx144.0mmx97.0mm
|
|
Industry
standard
|
|
EMC
|
EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5(Surge), Level 4
EN61000-4-6(CS), Level 4
EN61000-4-8, Level 5
|
|
Impact
|
IEC60068–2-27
|
|
Falling
|
IEC60068-2-32
|
|
Shock
|
IEC60068-2-6
|
|
Warranty
|
|
Warranty
|
5 Years
|
|
Certification
|
CE, FCC, RoHS
|
|
TIE7208
|
8 Gigabit Tx ports, dual DC12~48V
wide voltage power supply
|
|
TIE7208 -DC48
|
8 Gigabit Tx ports, dual DC48(36~72V)
isolate power supply
|
|
TIE7208 -AD220
|
8 Gigabit Tx ports, single AC85-264V/DC110~370V
isolate power supply
|
