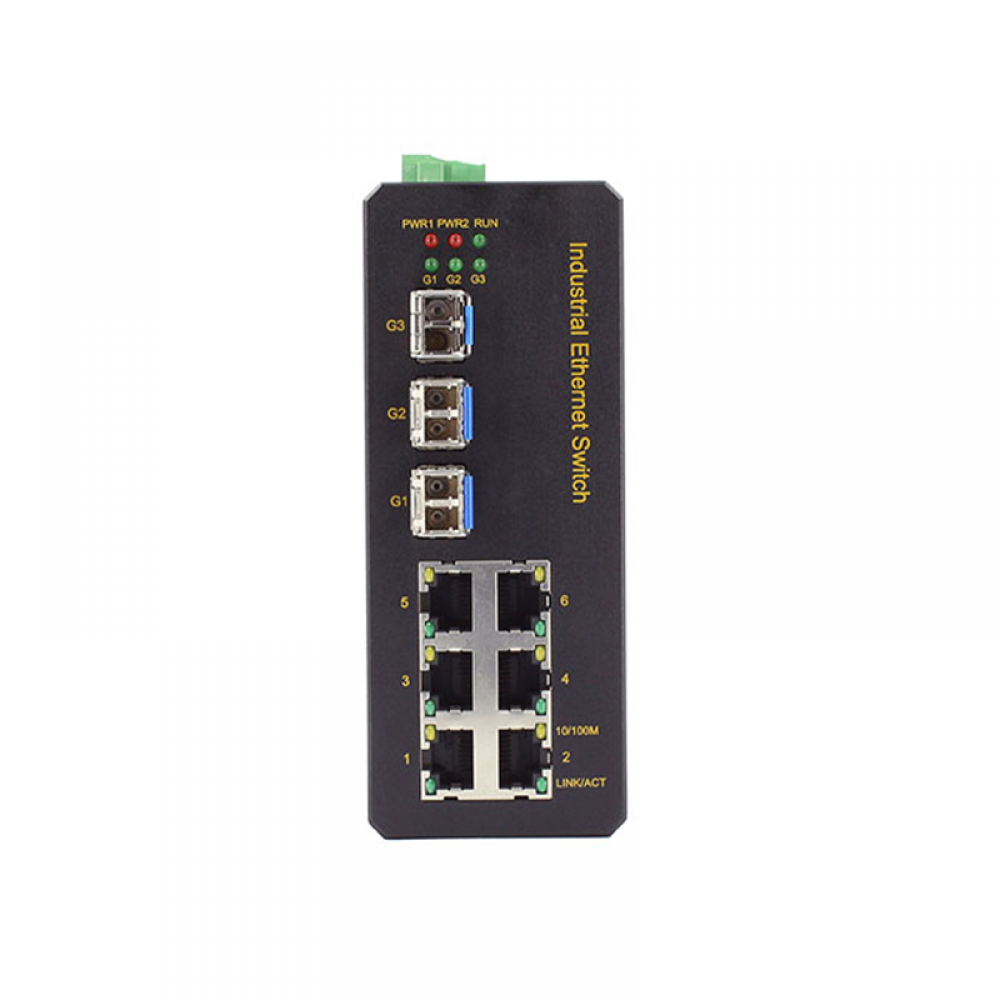

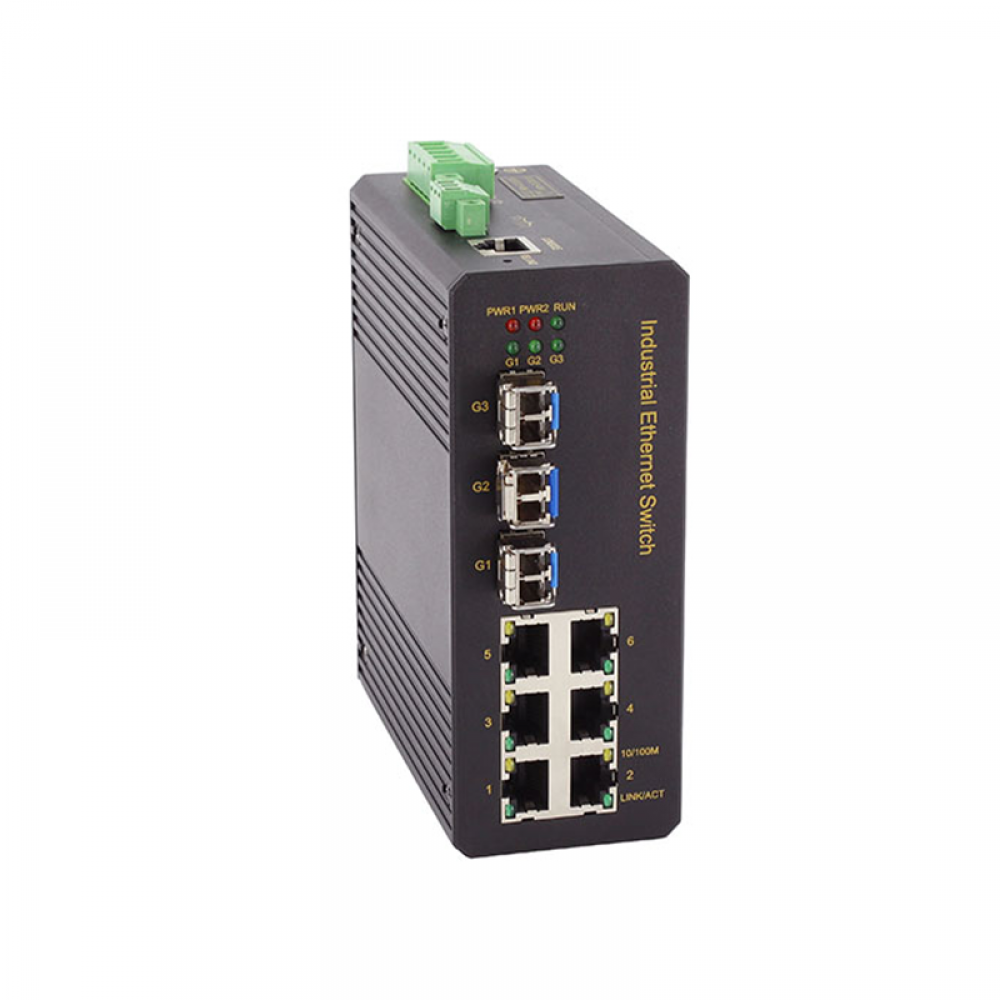

9 Ports 10/100Base layer 2 managed Din-rail industrial Ethernet switch with 3 fiber ports uplink

TMIE6209-3GF network management industrial Ethernet switch has 6 adaptive 100M electrical ports and 3 Gigabit SFP ports
It provides a high-end industrial Ethernet communication solution for flexible and variable industrial applications,
breaking through the 100M backbone network communication bottleneck and making industrial communication smoother，
more reliable and faster.

3 Gigabit SFP ports +6x10/100BaseT(x) ports
Supports indicator status display
Supports T-Ring with the recovery time<20ms
Supports static multicast/IGMP Snooping
Supports broadcast storm suppression/ Rate limit
Supports industrial grade dual power input backup
Supports power-down status relay alarm output
Supports VLAN/Qos/link aggregation/port mirroring
Industrial grade wide temperature/ fanless design
5 years warranty

Software performance
Redundancy protocol	Support T-Ring and the recovery time<20 ms. Support STP/RSTP
Multicast routing	Support IGMP snooping/ IGMP v1/v2/v3 Support GMRP Support static multicast
Management and maintenance	Support Console and Web management methods Support SNMPv1/v2c Support unified PC software management
Technical specifications
Ethernet Standard	IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.3z-1000BaseLX IEEE802.3ab-1000BaseTX IEEE802.1ab IEEE802.1D-Spanning Tree Protocol IEEE802.1w-Rapid Spanning Tree Protoco IEEE802.1Q -VLAN Tagging IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control
Switch properties
Priority queue	4
VLAN ID	1-4096
IGMP Groups	256
MAC table	8k
Switch Bandwidth	7.2Gbps
Switch Delay	<5μs
Interface
Gigabit ports	Port numbers:3
	Connector: SFP for fiber port(LC, single or multi-mode)or 10/100/1000M adaptive module
	Baud rate:1000Base-LX(fiber port), 10/100/1000M for adaptive 1000Base-Tx
10/100Base port	Port numbers:6
	Connector:9 fixed FX(single/multi-mode; SC/FC/ST) or RJ45 port
	Baud rate: 100Base-FX; 10/100M copper RJ45
Console port	RS232/RJ45
Terminal block for power input	5.08mm terminal block
Terminal block for relay alarm	5.08mm terminal block,1A@24VDC
Communication distance
Twisted-pair	100m(CAT5/CAT5e cable)
Multi-mode fiber	Gigabit multi-mode: 850nm 550m; 10/100Base multi-mode:1310nm 2km
Single mode fiber	Gigabit single mode: 1310nm 20km; 10/100Base single mode:1310nm 20/40km;1550nm 60/80km
LED indicator lights
Front panel LED	Port light: LINK/ACT; SPEED; Gx
	Running light: RUN
	Power LED: PWR1/PWR2
Power Requirements
Power input	DC110-220V(DC110-370V range) or AC100-240V(AC85-264V range) DC12V~DC48V available
Full-load consumption	<6W
Overload protection	support
Inversed protection	support
Redundancy protection	support
Working Environment
Operating Temperature	-40°C~80°C
Storage temperature	-40°C~85°C
Ambient Humidity	5%~95%( non-condensing)
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	35mm din rail-mounted installation
Dimension	138mmx110mmx54mm
Industry standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6
Warranty
Warranty period	5 Years
Certification	CE, FCC, RoHS

TMIE6209-3GF	3 Gigabit Fx pots +6 10/100M Tx ports, dual DC12~48V wide voltage power supply
TMIE6209-3GF-AD220	3 Gigabit Fx orts +6x10/100M Tx ports, single AC85-264V/ DC110~370V isolate power supply
