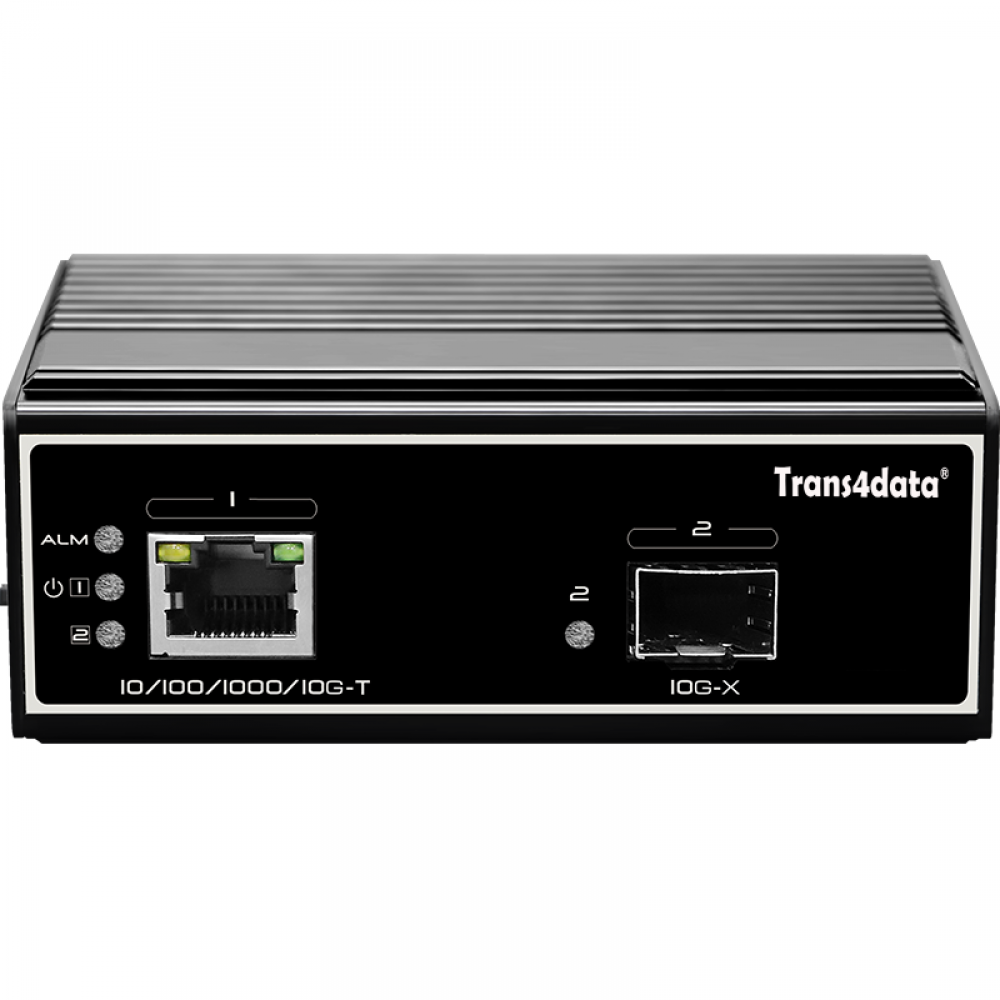

Industrial 1000M/2.5G/10G media converter

Industrial 1000M/2.5G/10G Media Converter

Model No.: TIMC5211T

1*10/100/1000/10GM ports and 1*10G/2.5G/1000M SFP ports;
Fiber ports provides 3 modes through the dip switch,10G, 2.5GM mode and 1000M
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -30℃～65℃
5 years warranty

OverviewFeaturesSpecificationApplicationOrder Information

The TIMC5211T is a 2-port industrial media converter that supports up to 1*10/100/1000/10GM ports and 1*10GM SFP ports.
Fiber ports provides 3 modes through the dip switch, 10G, 2.5GM mode and 1000M mode to adapt variety needs.

Supports Din-rail installation, which is reliable and durable, and can be used in security network video monitoring,
network engineering and other occasions

1*10/100/1000/10GM ports and 1*10G/2.5G/1000M SFP ports;
Fiber ports provides 3 modes through the dip switch,10G, 2.5GM mode and 1000M mode to adapt to variety needs;
Supports 6KV surge protection, 6KV contact / 8KV air ESD protection;
Supports working temperature -30℃～65℃

Parameter	Specifications
Power supply	Powered by power adaptor
Range of voltage	DC 12~60V
Consumption	Self consumption<5W
Downlink ports	Port 1 10/100/1000/10GBase-T RJ45
Uplink ports	Port 2 supports 3 modes of 10G/2.5G/1000Base-X
Working mode of fiber ports	It can be selected 10G, 2.5GM or 1000M work mode by dip switch
Relay alarm	1 channel relay alarm output for power off,ports link down
Cable and distance	Use cat5e/6,100m max
Standard	IEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric	40Gbps
Though put	29.76Mpps
Buffer	1M bits
MAC address table	8K
Indicator	Power: 2 *red ; Uplink2: Green LEDs indicate Link/Act Downlink 1: Yellow LED indicate or green LEDs indicate Link/Act
Protection	Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2
Working temperature	-30℃~65℃
Storage temperature	-40℃~85℃
Humidity	0~95%(No condensation)
Dimension(L×W×H)	101 mm×65 mm×36mm
Material	Aluminium alloy
Colour	Black
Net-weight	300g

Model

Description

TIMC5211T

With1*10/100/1000/10G downlink port and 1*10G/2.5G/1000M SFP port;

2*DC12-60V power supply(Power adaptor buy separately);

Fiber ports provides 3 modes through the dip switch, 10G, 2.5GM mode and 1000M mode to adapt to variety needs.
