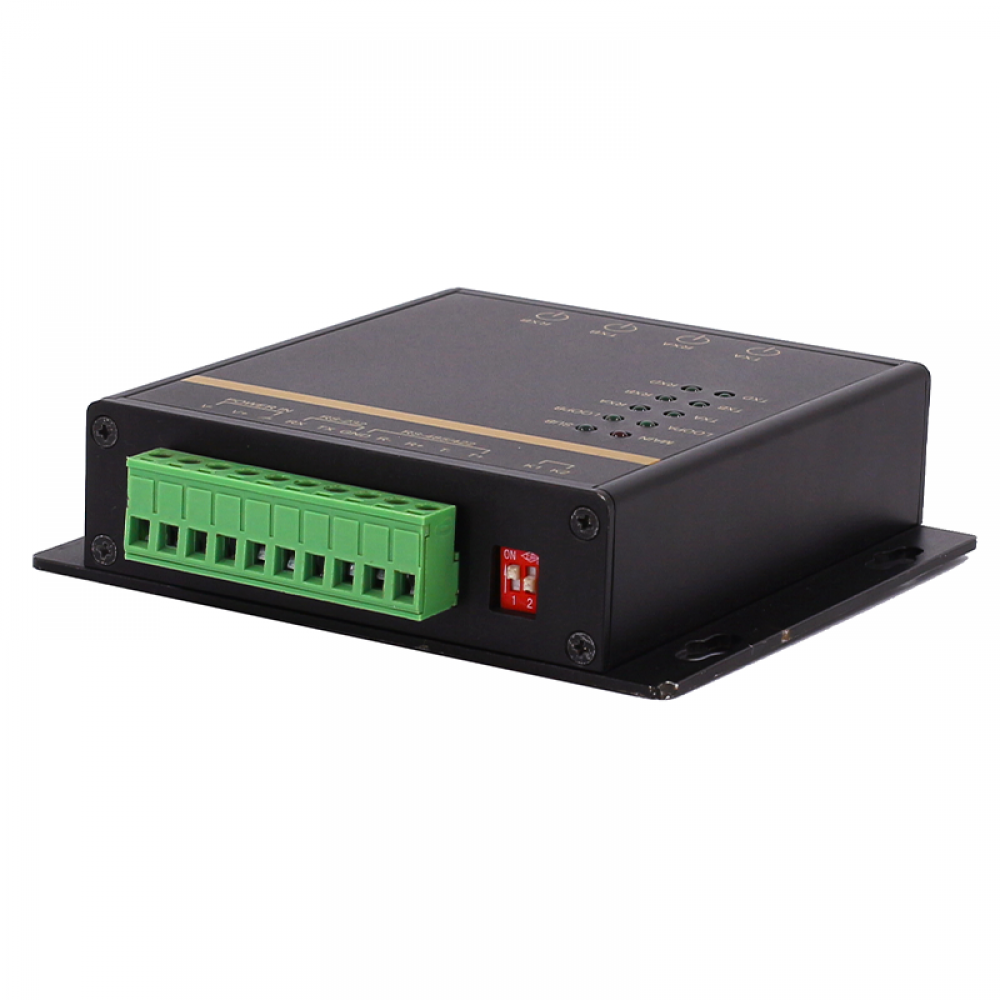

TFM321-2F-FR single-channel dual-loop self-healing industrial fiber modem is a low-cost serial data transmission communication device
with dual-ring self-healing function that can adapt to industrial environments. It can form a chain network or a dual-loop fiber network to
realize transparent transmission of one RS-232/RS-485/RS-422 on the fiber ring network without changing the user agreement
-
Supports fast ring network redundancy function;
-
PCM pulse code modulation technology combined with digital phase-locked loop clock extraction technology;
-
Serial protection circuit, hot-swappable;
-
Serial access node greater than 128;
-
Smart electrical interface, no dial setting;
-
Perfect status indication, LED light alarm, easy maintenance and troubleshooting
|
Technical parameters
|
|
Standard
|
Compliant
with EIA RS-232, RS-485, RS-422
|
|
Interface
|
|
Interface
form
|
Serial Port: Electrical characteristics, Meet
RS-232/RS-422/RS-485
Physical
characteristics, Industrial terminal block
Optical
interface: Single multi-mode optional, SC/ST/FC optional
|
|
Communication rate
|
|
Baud Rate
|
300bps~115.2Kbps, rate adaptive signal
|
|

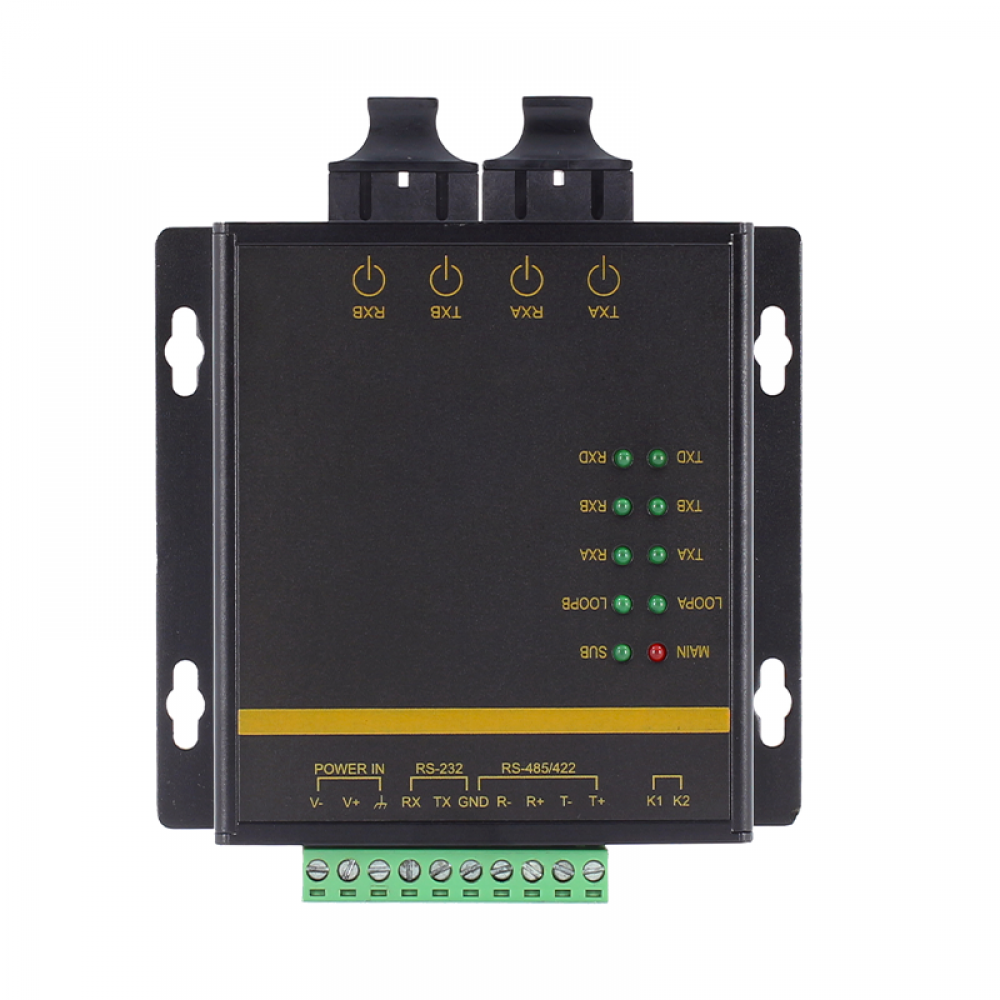

LEDs
|
|
Power indicator
|
POW
|
|
Master slave indicator
|
MAIN, SUB
|
|
Data transmission indicator light
|
LOOPA/B, TXA/B, RXA/B, TXD, RX
|
|
Power
|
|
Power Supply
|
DC12V(D9~18V)
DC24V(DC18~36V)
DC48V(DC36~72V)
AC85~265V/DC110~370V
|
|
Interface
|
Industrial
terminal block
|
|
Power
|
<2W
|
|
Overload protection
|
Support
|
|
Lightning protection
|
600W/ms
anti-lightning strike
|
|
Static protection
|
15kv anti-static
|
|
Physical Characteristics
|
|
Shell
|
Aluminum
housing
|
|
Dimension
|
144mm×33mm×97mm
(MWF501-S/M-KG)
|
|
Weight
|
0.4kg
|
|
Transmission
distance
|
|
Serial
port line
|
RS-232,15m@9600bps
RS-422/RS-485,
1.2km@9600bps
|
|
Multimode fiber
|
1310nm, 5Km
|
|
Single mode fiber
|
1310nm, 20km/40km
1310nm, 60km/80km
|
|
Working Environment
|
|
Operating
Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%
|
|
Warranty
|
|
Warranty
|
5 Years
|
|
Certification
|
|
Certification
|
CE, FCC
|
|
|
|
TFM321-2F-FR -M/S
|
RS232/485/422 three-in-one terminal block
interface, Fiber ring network self-healing type:
1) Multi-mode
2Km/ Single-mode: 20Km;
2) External
supply;
3) aluminum
alloy case desktop installation.
|
