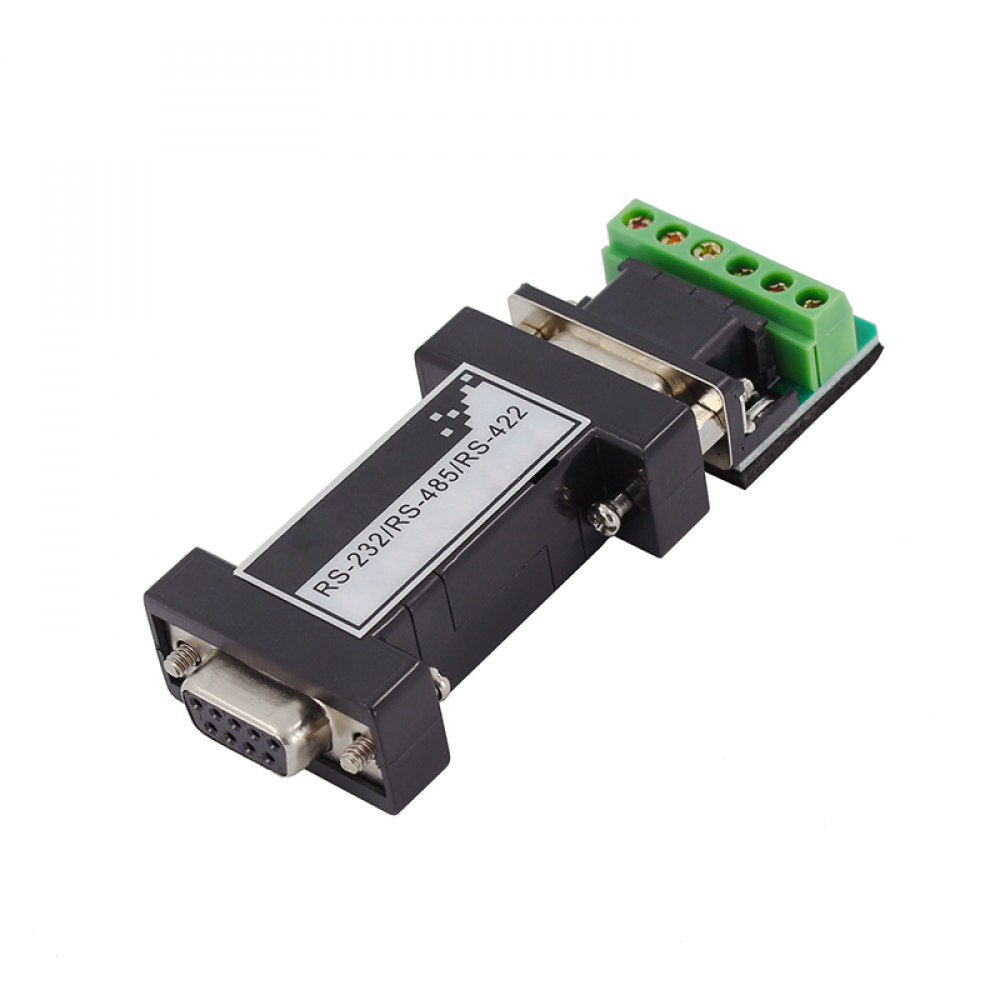

RS232 to RS485/RS422 industrial Non-isolated serial converter with serial port powered

Model No.: TSC232-485-422-PD

RS-485 two-wire half-duplex communication, RS-422 four-wire full duplex;
Integrated industrial terminal block, standard DB9 port serial port;
Unique serial port protection circuit, can be hot plugged;
Built-in intelligent module to automatically identify RS-485 signal flow without CTS flow control;
Signal line 600W/ms anti-lightning protection and 15KV anti-static protection;
Transparent transmission, baud rate adaptive, no need to change user agreement;
Industrial grade design, 5 years warranty

OverviewFeaturesSpecificationApplicationOrder Information

RS-232/485/422 interface converter: The main function is to realize the bidirectional mutual conversion
between RS-232 signal and RS-422/485 signal. The series products are powered by serial port stealing or external power supply,
which has small size, long distance, stable performance and other characteristics. At the same time, the series of products are easy to
install and meet the needs of industrial field serial port data conversion, and are widely used in intelligent power management,
intelligent traffic bayonet, water conservancy monitoring, industrial automation and other systems

RS-485 two-wire half-duplex communication, RS-422 four-wire full duplex;
Integrated industrial terminal block, standard DB9 port serial port;
Unique serial port protection circuit, can be hot plugged;
Built-in intelligent module to automatically identify RS-485 signal flow without CTS flow control;
Signal line 600W/ms anti-lightning protection and 15KV anti-static protection;
Transparent transmission, baud rate adaptive, no need to change user agreement;
Industrial grade design, preferably imported components, all surface mount technology

Technical parameters
Standard	Compliant with EIA RS-232, RS-485, RS-422 standards
Interface
Interface form	RS-232: DB9 interface RS-485/RS-422: Industrial terminal block
Communication rate
Baud Rate	300bps~38.4kbps
LEDs
Power indicator	POW(Red): Always lit when the power is connected normally
Serial port transceiver indicator light	︾(Green): Flashes when data is being sent or received ︽(Yellow): Flashes when data is being sent or received
Power
Power Supply	Serial Port Powered
Interface	DB9 interface, industrial terminal block
Physical Characteristics
Shell	DB9 plastic case
Dimension	87mm×17mm×33mm
Weight	0.03kg
Transmission distance
Serial port line	RS-232, 15m@9600bps RS-422/RS-485, 1.2km@9600bps
Working Environment
Operating Temperature	-40°C~80°C
Storage temperature	-40°C~85°C
Ambient Humidity	5%~95%
Warranty
Warranty	5 Years
Certification
Certification	CE, FCC, RoHS

Order Info	Data Interface	Transmission rate	Isolation protection	Power supply
TSC232-485-422-PD	RS232 to RS422/RS485	300bps～38.4Kbps	Non-isolated	Serial port powered
