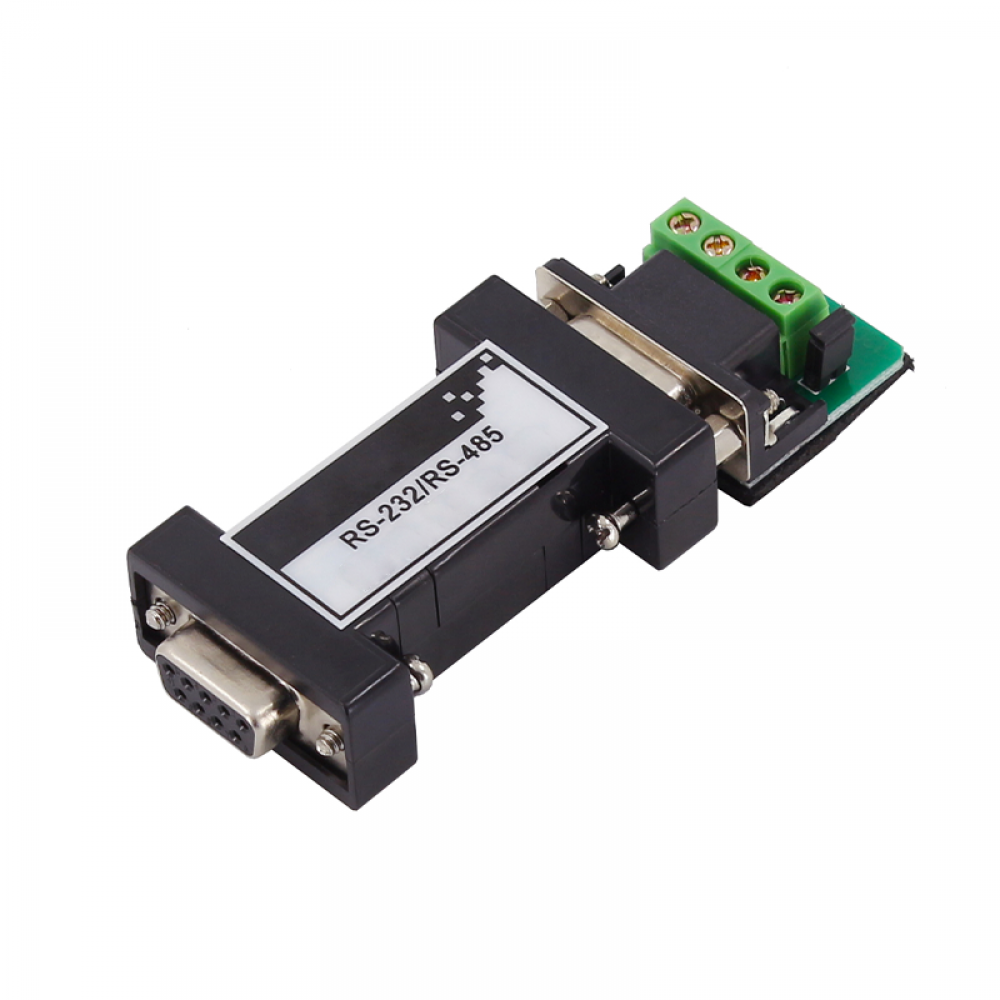

RS232 to RS485 industrial isolated serial converter with external power supply

Model No.: TSC232-485-IP

  • RS-485 two-wire half-duplex communication;
  • Integrated industrial terminal block, standard DB9 port serial port;
  • Unique serial port protection circuit, can be hot plugged;
  • Built-in intelligent module to automatically identify RS-485 signal flow without CTS flow control;
  • Signal line 600W/ms anti-lightning protection and 15KV anti-static protection;
  • Industrial grade design, 5 years warranty
OverviewFeaturesSpecificationApplicationOrder Information
RS-232/485 interface converter: The main function is to realize the bidirectional mutual conversion
between RS-232 signal and RS-485 signal. The series products are powered by serial port stealing ,
which has small size, long distance, stable performance and other characteristics. At the same time,
the series of products are easy to install and meet the needs of industrial field serial port data conversion,
and are widely used in intelligent power management, intelligent traffic bayonet, water conservancy monitoring,
industrial automation and other systems

  • RS-485 two-wire half-duplex communication,
  • With integrated industrial terminal block, standard DB9 port serial port;
  • Unique serial port protection circuit, can be hot plugged;
  • Built-in intelligent module to automatically identify RS-485 signal flow without CTS flow control;
  • Signal line 600W/ms anti-lightning protection and 15KV anti-static protection;
  • Transparent transmission, baud rate adaptive, no need to change user agreement;
  • Industrial grade design, preferably imported components, all surface mount technology

Technical parameters

Standard

Compliant with EIA RS-232, RS-485, RS-422 standards

Interface

Interface form

RS-232: DB9 interface

RS-485/RS-422: Industrial terminal block

Communication rate

Baud Rate

 300bps~38.4kbps

LEDs

Power indicator

POW(Red): Always lit when the power is connected normally

Serial port transceiver indicator light

(Green): Flashes when data is being sent or received

(Yellow): Flashes when data is being sent or received

Power

Power Supply

external supply DC5V

Interface

DB9 interface, industrial terminal block

Physical Characteristics

Shell

DB9 plastic case

Dimension

87mm×17mm×33mm

Weight

0.03kg

Transmission distance

Serial port line

RS-232, 15m@9600bps

RS-422/RS-485, 1.2km@9600bps

Working Environment

Operating Temperature

-40°C~80°C

Storage temperature

-40°C~85°C

Ambient Humidity

5%~95%

Warranty

Warranty

5 Years

Certification

Certification

CE, FCC, RoHS




Order Info

Data Interface

Transmission rate

Isolation protection

Power supply

TSC232-485-IP

RS232 to RS485

300bps38.4Kbps

Isolated

External DC5V power supply
