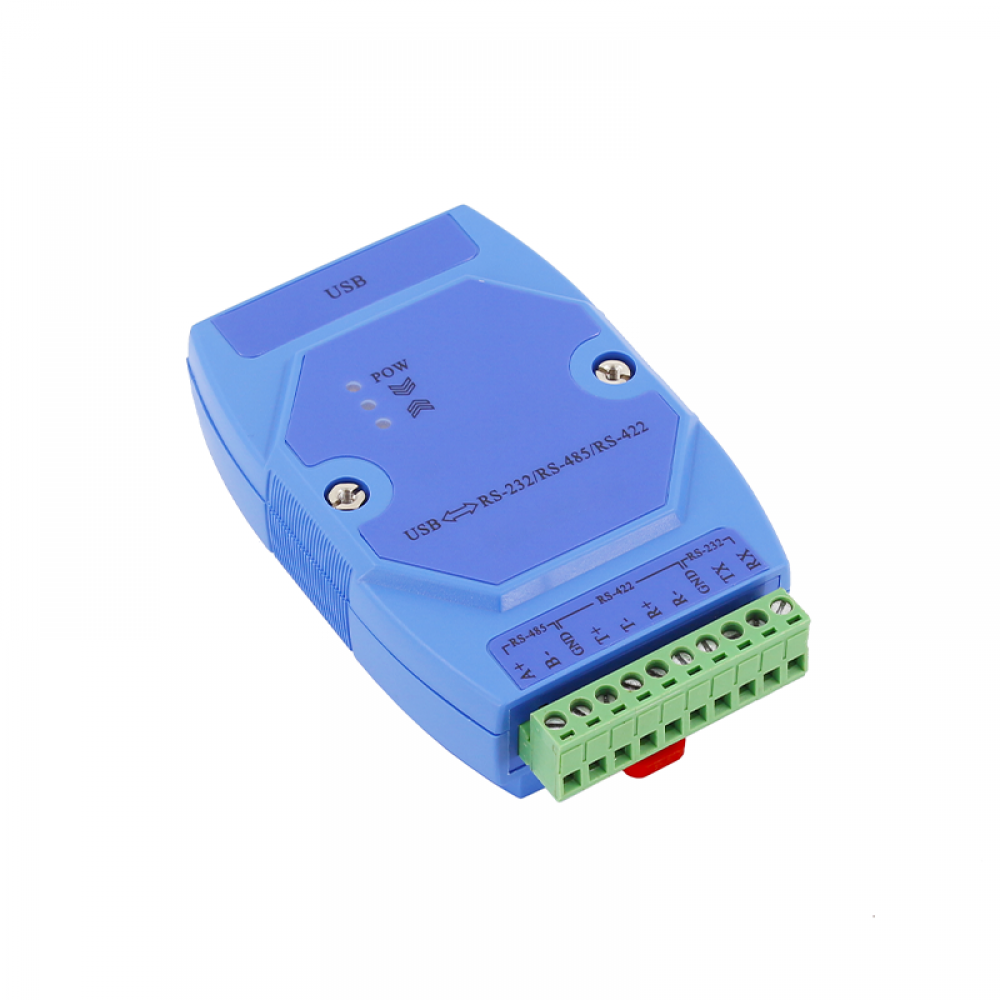

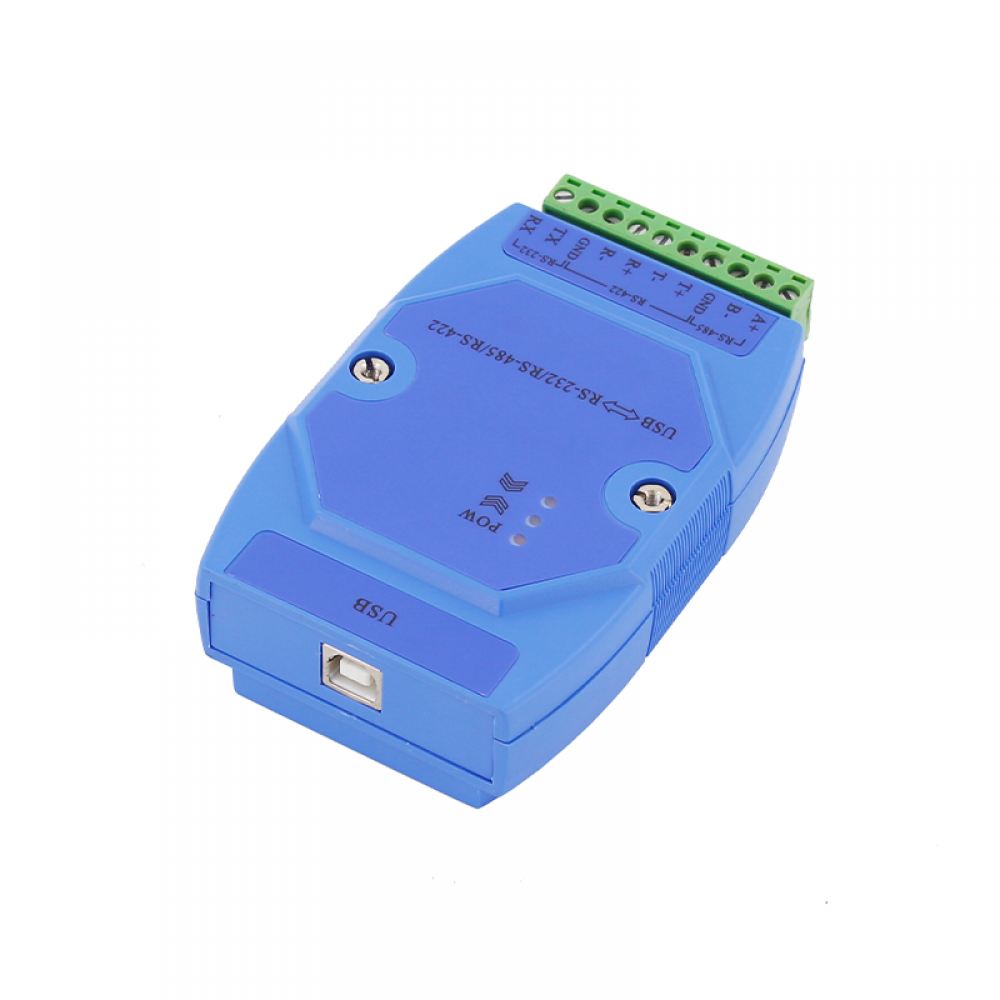

USB and RS-232/RS-485/422 interface converter realizes the conversion between USB and RS-232/RS-485/422 signals,
so that the USB interface of the monitoring console can be connected with up to 4 RS-232/RS- 485/422 device communication,
this plug-and-play USB solution is ideal for applications in the mobile, measurement and data acquisition industries
-
Fully compliant with USB 2.0 specification, support hot swap;
-
1 channels RS485,RS422 ;
-
Supports multiple operating systems such as WIN98/2000/XP;
-
Supports long-distance awoken and power manage;
-
Unique serial protection circuit, static & lightning & protection and surge suppression;
-
Built-in intelligent module, auto recognizes RS422/RS485 signal flow, zero delay automatic forwarding technology;
-
Industry level design, 5 years warranty
|
Technical parameters
|
|
Standard
|
Meet
USBV1.0/2.0 standard; Compliant with EIA RS-232, RS-485, RS-422 standards
|
|
Interface
|
|
Interface
form
|
USB: USB female
Industrial terminal block
|
|
Communication rate
|
|
Baud Rate
|
820B: 300bps~12Mbps
|
|
LEDs
|
|
Power
indicator
|
POW(Red):
Always lit when the power is connected normally
|
|
Serial
port transceiver indicator light
|
Flashes
when data is being sent or received
|
|
Power
|
|
Power Supply
|
Powered by the
USB interface
|
|
Interface
|
USB
female
|
|
Power consumption
|
≤2W
|
|
Physical Characteristics
|
|
Shell
|
DIN rail
shell
|
|
Dimension
|
113mm×34mm×72mm
|
|
Weight
|
0.1 kg
|
|
Transmission
distance
|
|
Serial
port line
|
RS-232, 15m@9600bps
RS-422/RS-485, 1.2km@9600bps
|
|
Working Environment
|
|
Operating
Temperature
|
-40°C~80°C
|
|
Storage temperature
|
-40°C~85°C
|
|
Ambient Humidity
|
5%~95%
|
|
Warranty
|
|
Warranty
|
5 Years
|
|
Certification
|
|
Certification
|
CE, FCC
|
|
Item No.
|
Description
|
|
TU322-485-422
|
USB←→RS485/422, terminal
block interface, USB power supply isolated type, DB9 plastic case din-rail
installation.
|
