Gigabit fiber redundant SFP media converter

The TMC2101SFP is the Gigabit SFP Media Converter which provides 1 TP and 2 SFP ports to support conversion
between 10/100/1000Base-T and 1000Base-X network. With the two 1000Base-SX / LX SFP ports, the TMC2101SFP
provides high reliability and flexibility to extend the media transmission distance up to 550m, 20km, or longer depending on
the 1000Base-SX / LX SFP fiber modules. It allows the two types of segment to connect easily, efficiently and inexpensively

With the 3-Port Switch mode, they work in high performance Store and Forward mechanism, and prevent packet loss
with IEEE 802.3x Flow Control (Full-Duplex) and Back Pressure (Half-Duplex) function. As the TMC2101SFP Media Converter
fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX / SX,
the Gigabit media converter installation is quite quick and easy by simply plug and play.

The TMC2101SFP supplied a DIP-Switch to set the operation mode of the SFP ports, When the DIP-Switch is set to the REDUNDANT,
the port1 works as main channel, and the port2 works as redundant channel, to make sure the network normally.

Complies with IEEE 802.3 10Base-T Ethernet, IEEE802.3 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE 802.3z 1000Base-SX/LX, IEEE 802.3x flow control
2 ports 1000Base-SX/LX SFP Fiber optic, 1 port 10/100/1000Base-T RJ45
Auto-Negotiation for 10/100 Base-TX Full-Duplex and 10/100 Base-TX Half-Duplex
Support IEEE 802.3x Full-Duplex Flow-Control and Back pressure for Half-Duplex to eliminates packets loss
Support Auto MDI/MDI-X function
Support VLAN tag, Multicast pass through, and support the max packet length 1522 byte
Store-and-Forward mechanism, and 3-port data auto-switching
Support DIP-Switch to set the operation mode of the SFP ports (Switch mode and Redundant mode)
Low switch latency (<10ms) in Redundant mode

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x flow control
Wavelength	Vary on SFP fiber module
Transmission distance	SFP port: Vary on SFP fiber module Category-5 twisted pairs: 100m
Port	One RJ45 port: Connecting with STP/UTP category-5 twisted pairs, EIA568A/B Two SFP port slots: Vary on SFP fiber module
BER	<10^-9
MTBF	100,000 hours
Switch mechanism	Store-and-Forward

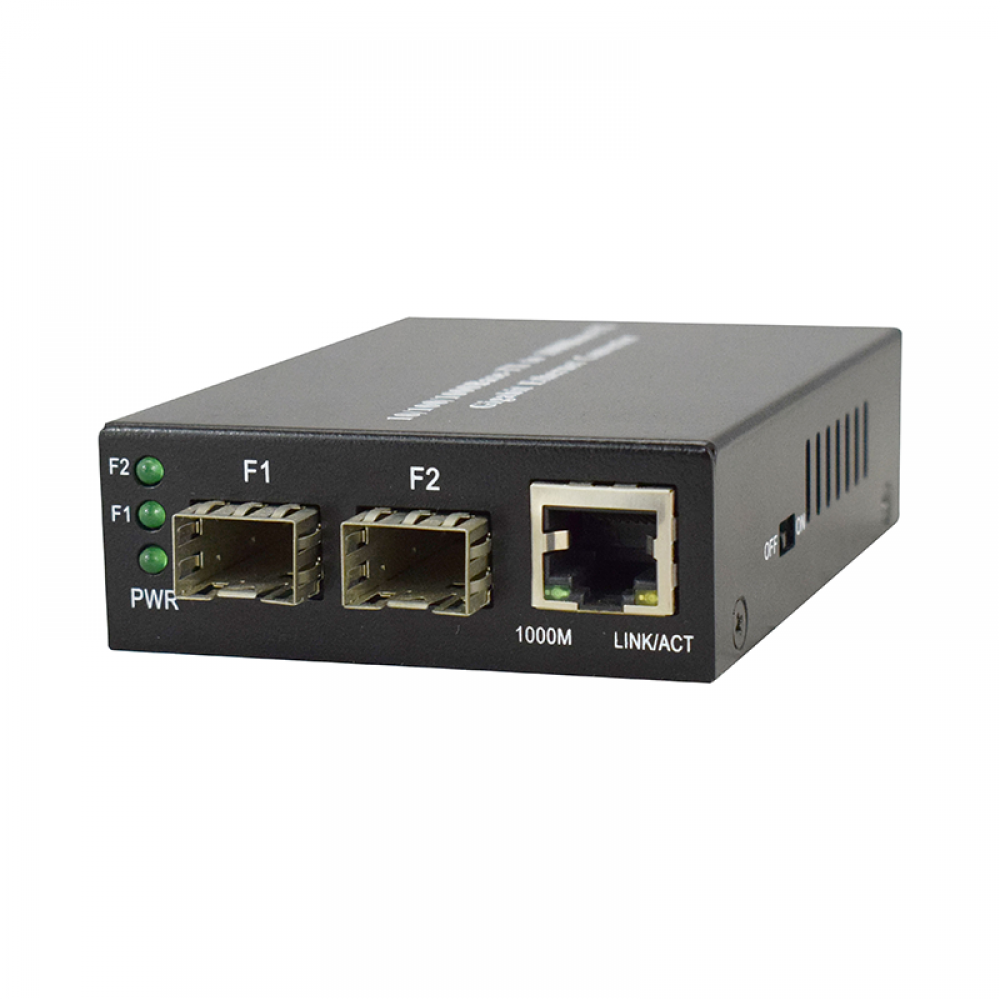

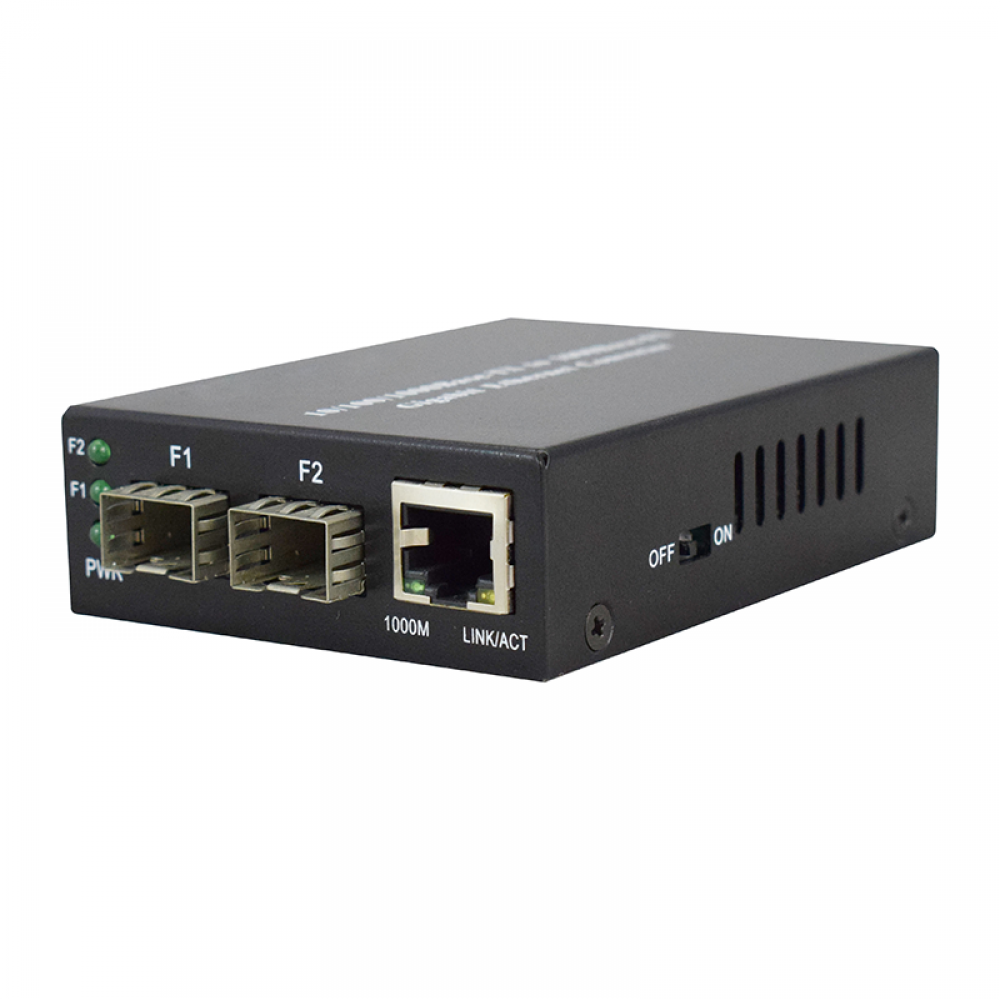

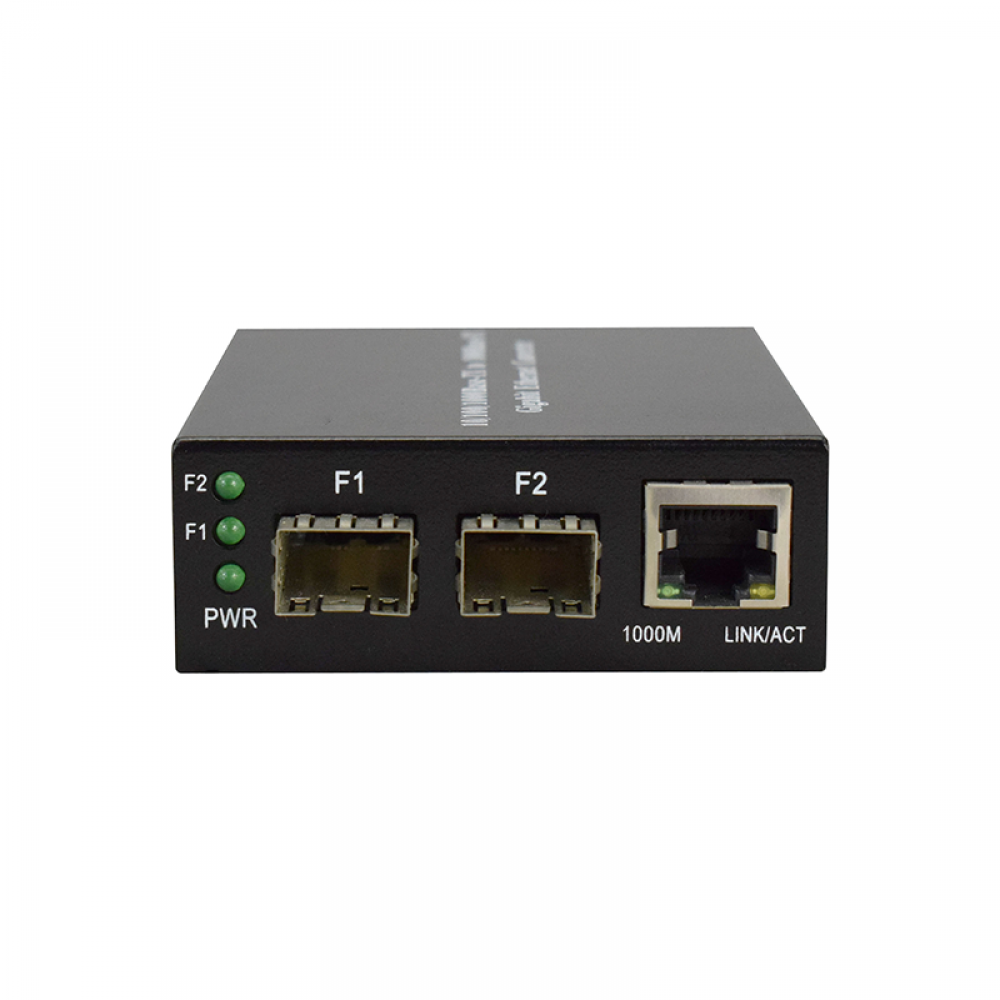

LED indicator	POWER (power supply), TP Speed (On:1000Mbps,Off:10/100Mbps) TP LINK/ACT , SD1(SFP Port 1 link/act LED), SD2(SFP Port 2 link/act LED)

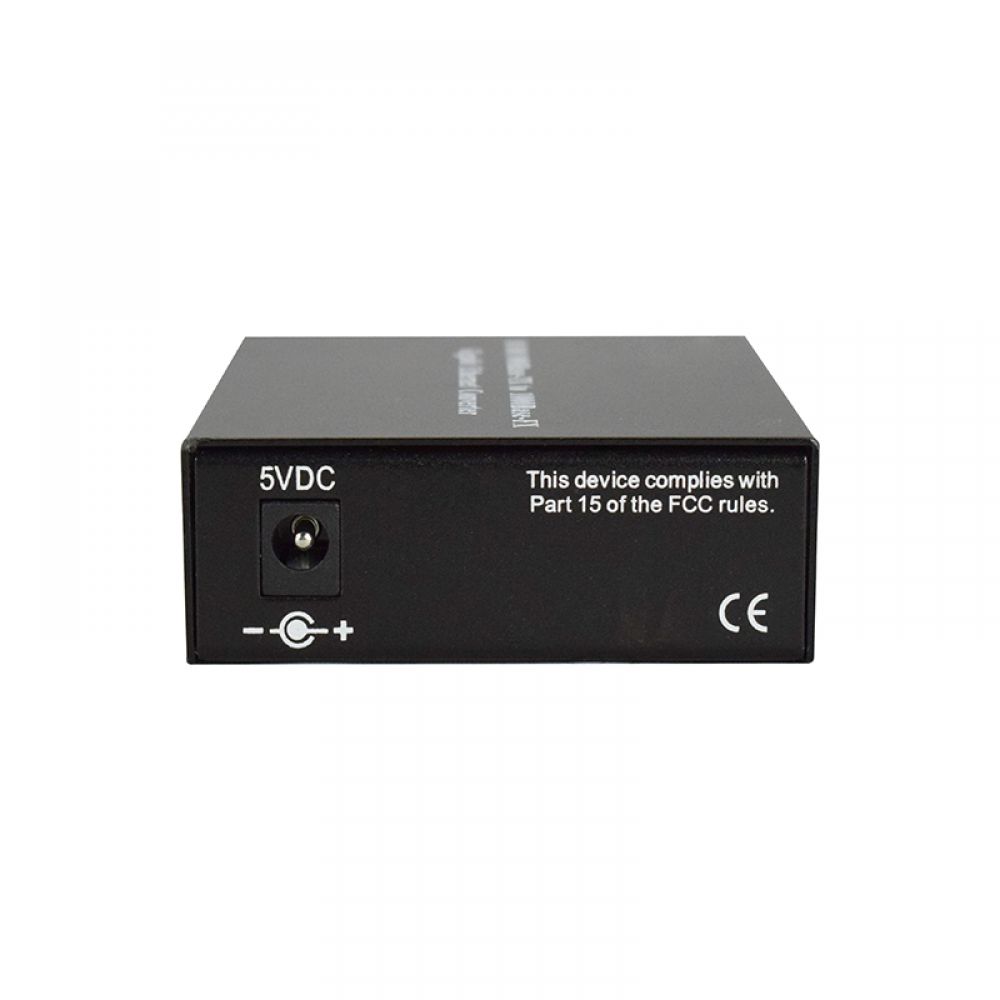

Power supply	External: AC90~264V/DC100~380V input, 5V 2A output
Power consumption	Max. 5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions	71mm (W)×94mm (D)×26 mm (H) (external power supply)

TMC2101SFP

10/100/1000Base-T to 1000Base-F, two SFP Slot (SFP module are optional), transmission distance:200m to 80KM depending on SFP module, standalone, external power adaptor

10/100/1000M fiber redundant media converter
